MCPClevis and Yoke Ends · Female
CTC-187

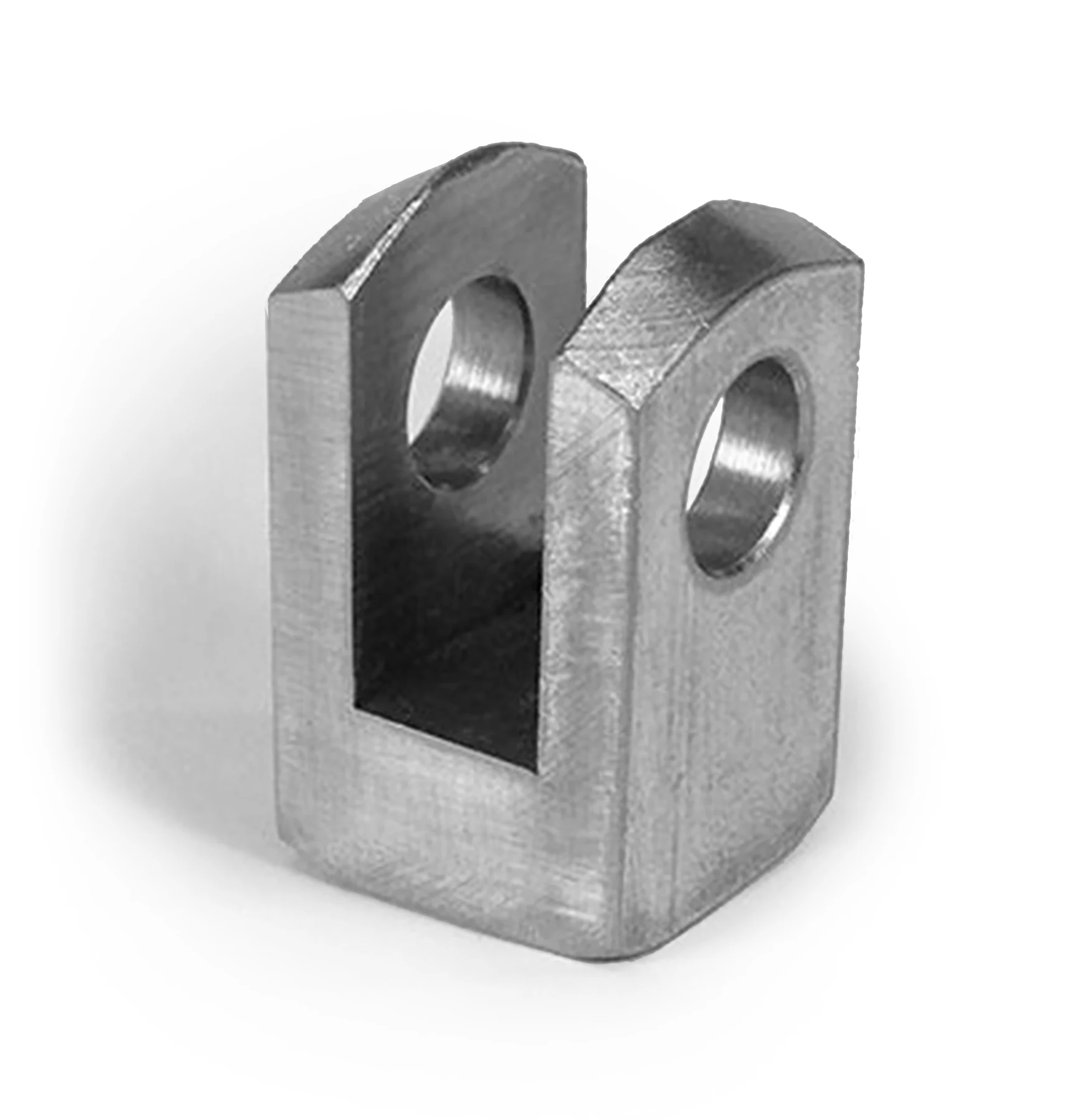

CTC-187, Clevis and Yoke Ends, Female 10-32 RH 0.188 Pin Holes Zinc Clear Hex Free (ROHS) Turned Construction for Cylinders and Solenoids
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.33 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.33 |
| 2+ | $5.83 |
| 3+ | $4.94 |
| 4+ | $4.52 |
| 5+ | $3.28 |
| 10+ | $2.55 |
| 25+ | $1.98 |

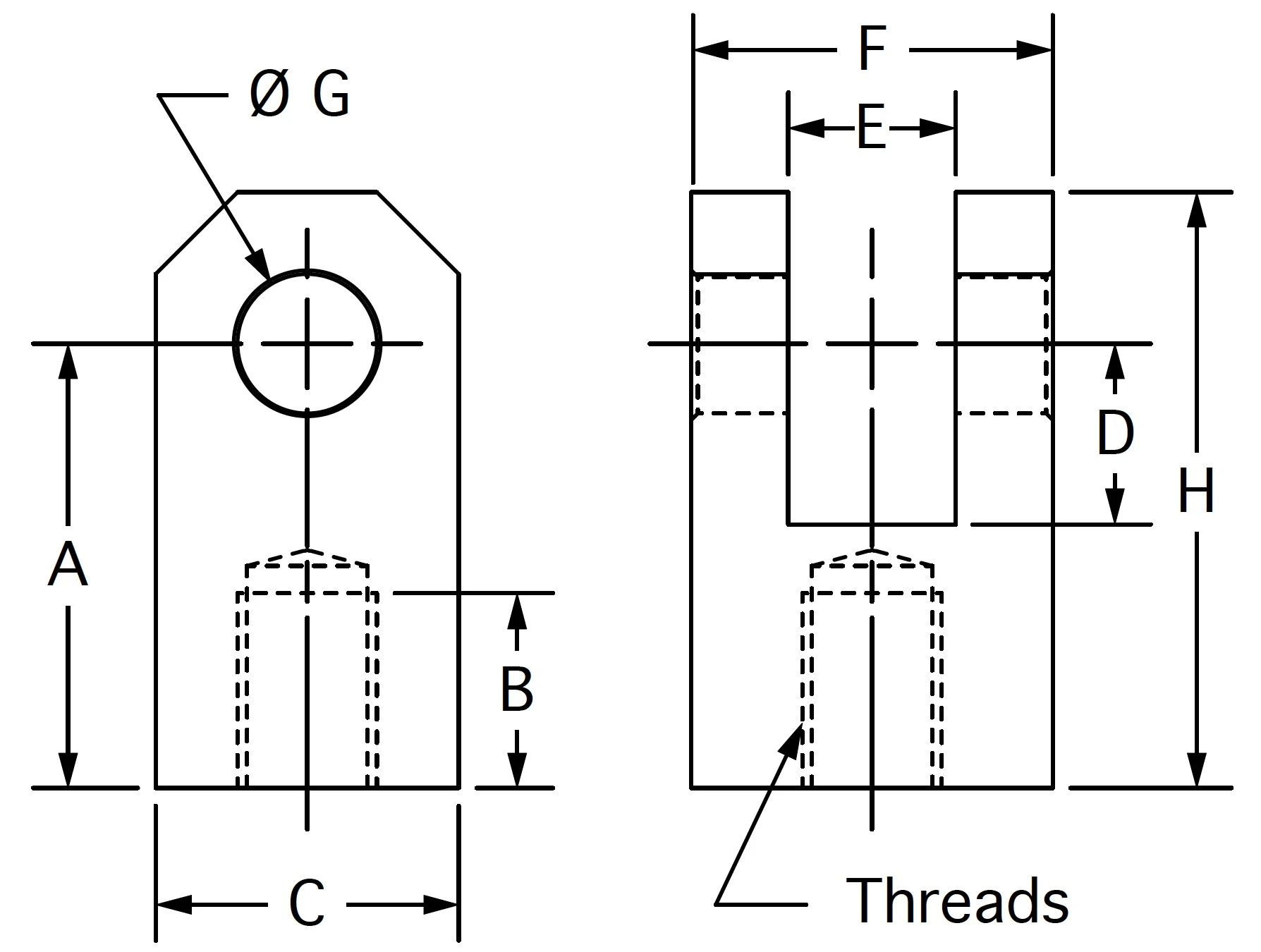

Drawing dimensions
| Threads | 10-32 RH |
|---|---|
| A | 0.750 |
| B | 0.375 |
| C | 0.375 |
| D | 0.375 |
| E | 0.190 |
| F | .375 |
| G | 0.187 |
| H | 0.937 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: CTC Clevis ends are typically assembled to the end of a cylinder arm.
Material: low carbon steel
Finish: plated zinc clear
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
