Cable End Fittings, Special · 0.072 Wire Diameter

CTE-072-276

CTE-072-276, Cable End Fittings, Special, 0.072 Wire Diameter 0.276 Bore 1.400 Base to Center of Eye Cable Terminal End Style

Product image
CTE-072-276 product image
Dimension drawing 1
CTE-072-276 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$9.54 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Bore diameter0.276
Finish / platingZinc Yellow

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$9.54
2+$6.97
3+$6.14
4+$4.36
5+$4.11
10+$3.30
25+$2.32
50+$2.03
100+$1.53
250+$1.35
500+$1.22
1,000+$1.07

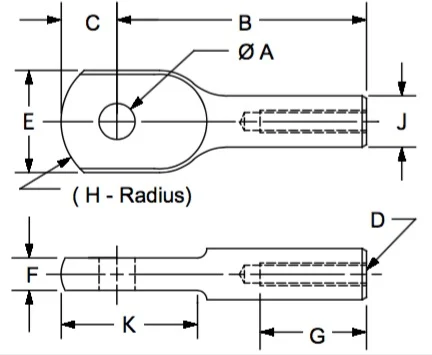

Drawing dimensions

PlatingZinc Yellow
A0.276
B1.400
C0.240
D0.072 Ø Hole
E0.515
F0.0930
G0.562
H0.280
J0.375
K1.000

Lettered dimensions refer to the drawing for this part.

Product information

Application: Cable Terminal Eyes are typically assembled, crimped or swaged to a push-pull cable. They may also be assembled onto a threaded rod. Construction: low carbon steel, zinc plated
