Cable End Fittings, Special · 8-32 RH

CTE-2F-375

CTE-2F-375, Cable End Fittings, Special, 8-32 RH 0.375 Bore 1.470 Base to Center of Eye Cable Terminal End Style

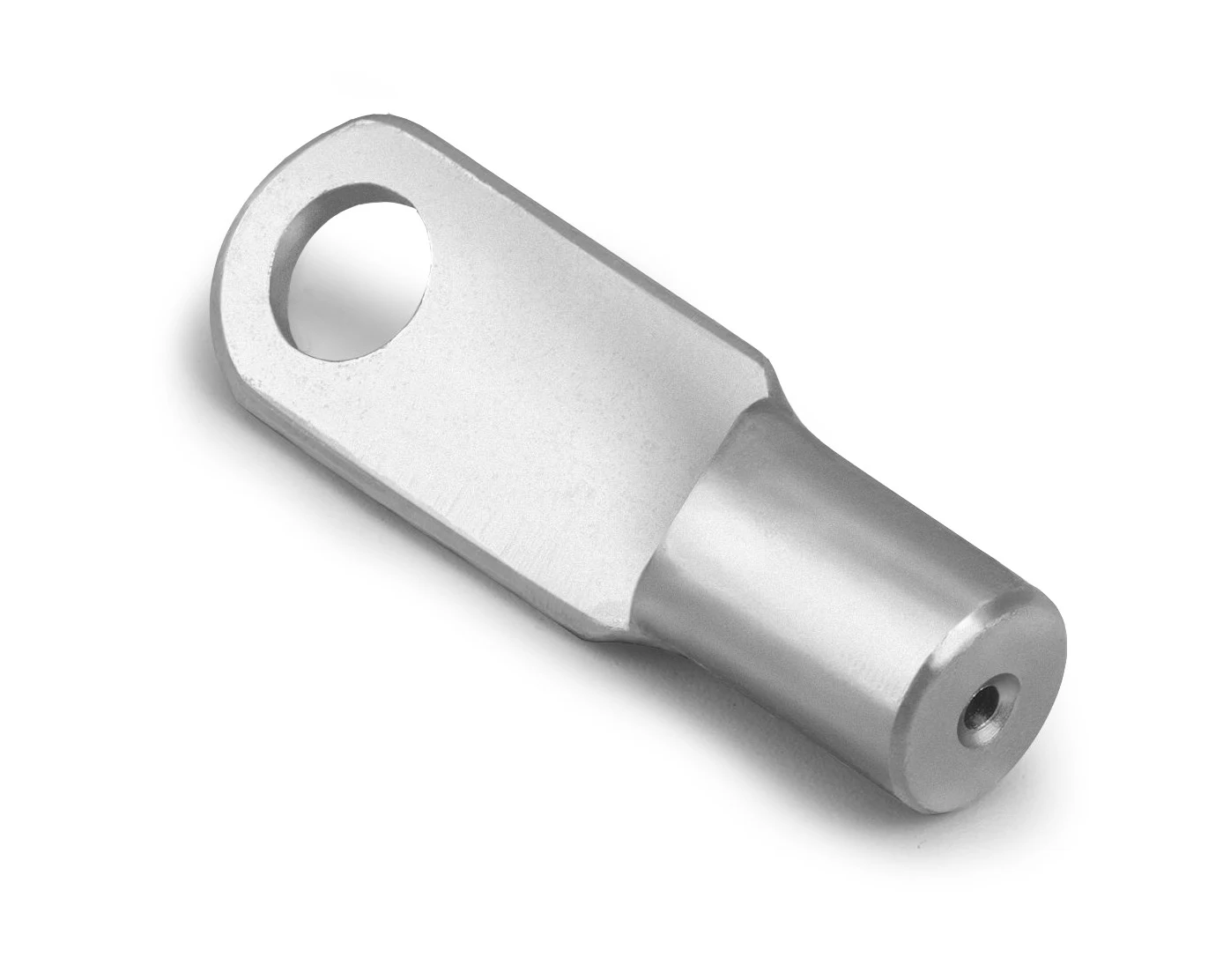

Product image
CTE-2F-375 product image

$7.07 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Bore diameter0.375
Finish / platingZinc Yellow

Values without units follow the drawing.

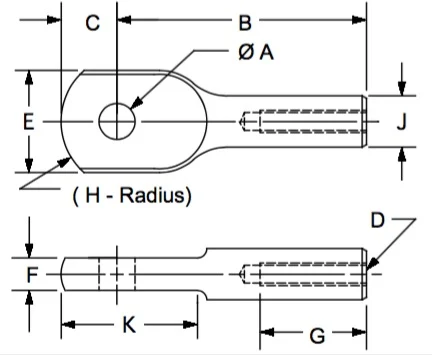

Drawing & dimensions

CTE-2F-375 dimension drawing
PlatingZinc Yellow
A0.375
B1.470
C0.410
D8-32
E0.750
F0.2375
G0.562
H0.500
J0.375
K1.000
Item envelope L × W × H (in)1.88 × 0.75 × 0.375
Unit weight (lb)0.06

Lettered dimensions refer to the drawing for this part.

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$7.07
2+$4.57
3+$3.74
4+$3.32
5+$3.03
10+$1.91
25+$1.48
50+$1.07
100+$0.93

Product information

Application: Cable Terminal Eyes are typically assembled, crimped or swaged to a push-pull cable. They may also be assembled onto a threaded rod. Construction: low carbon steel, zinc plated

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
