MCPCable Assemblers Subcomponents · Thread Protectors
CTP-40 (thread protector)
CTP-40 (thread protector), Cable Assemblers Subcomponents, Thread Protectors 1/4-28 Nominal Size
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.74 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.74 |
| 2+ | $3.24 |
| 3+ | $2.41 |
| 4+ | $1.99 |
| 5+ | $1.74 |
| 10+ | $1.24 |
| 25+ | $0.71 |
| 50+ | $0.56 |
| 100+ | $0.45 |
| 250+ | $0.34 |
| 500+ | $0.25 |
| 1,000+ | $0.23 |
| 2,000+ | $0.22 |

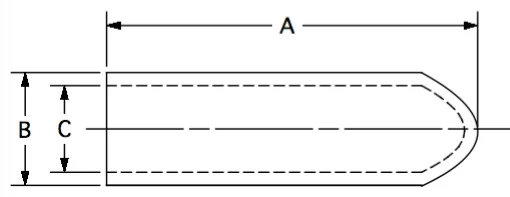

Drawing dimensions
| For Thread Size of... | 1/4-28 |
|---|---|
| A | 1.050 |
| B | 0.29 |
| C | 0.228 |
| D | 0.930 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: molded plastic
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
