MCPBearings, Spherical Rod End · Female
DBF-5Z
DBF-5Z, Bearings, Spherical Rod End, Female M5 x 0.80 RH Steel Housing, Bronze Race, Zerked
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M5 x 0.8 RH |
|---|---|
| Grease fitting | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.27 |
| 2+ | $3.77 |
| 3+ | $2.94 |
| 4+ | $2.52 |
| 5+ | $2.27 |
| 10+ | $1.75 |
| 25+ | $0.98 |
| 50+ | $0.78 |
| 100+ | $0.64 |
| 250+ | $0.43 |
| 500+ | $0.38 |

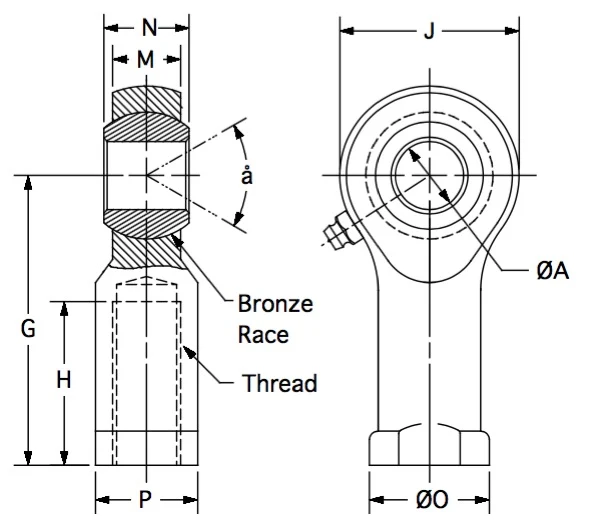

Drawing dimensions
| Threads | M5 x 0.80 RH |
|---|---|
| A | 5 |
| a° | 13 |
| G | 27 |
| H | 10 |
| J | 18 |
| M | 6 |
| N | 8 |
| O | 11 |
| P | 9 |
| Zerk | Yes |
Lettered dimensions refer to the drawing for this part.
Product information
Application: DBF-series spherical rod ends may be assembled to a rod, pipe, tube, cylinder or cable connecting linkage to allow misalignment between two moving points. This series features a bronze bearing race and a zerk, making it ideal for multiple cycle applications.
Ball: chrome plated steel, surface hardened for wear resistance and plated for corrosion resistance.
