MCPBearings, Spherical Rod End · Female
DBF-8Z

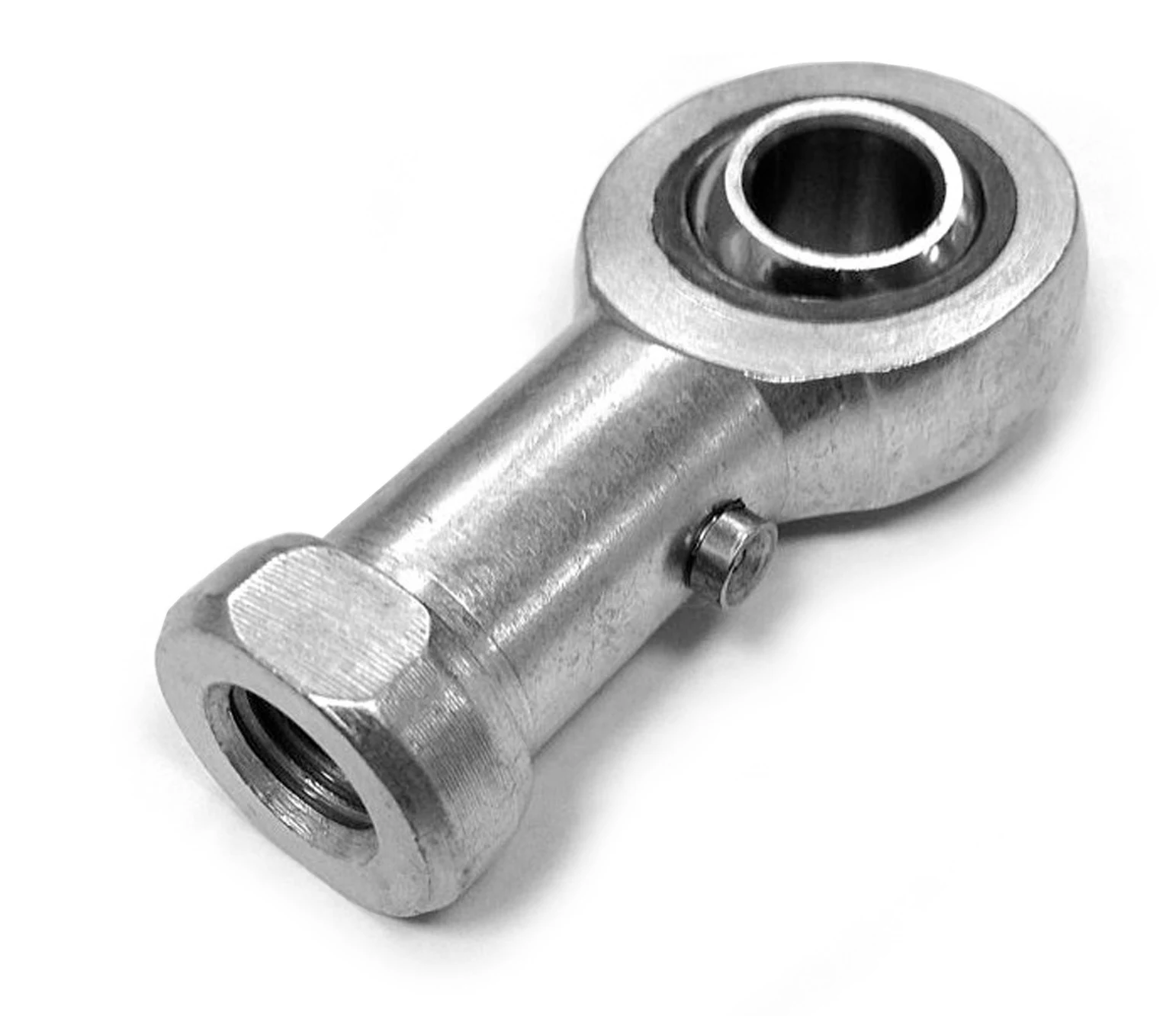

DBF-8Z, Bearings, Spherical Rod End, Female M8 x 1.25 RH Steel Housing, Bronze Race, Zerked
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$14.57 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M8 x 1.25 RH |
|---|---|
| Grease fitting | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $14.57 |
| 2+ | $9.15 |
| 3+ | $8.32 |
| 4+ | $7.25 |
| 5+ | $7.00 |
| 10+ | $5.04 |
| 25+ | $4.34 |
| 50+ | $3.26 |
| 100+ | $2.89 |
| 200+ | $2.71 |
| 400+ | $2.29 |
| 600+ | $2.28 |

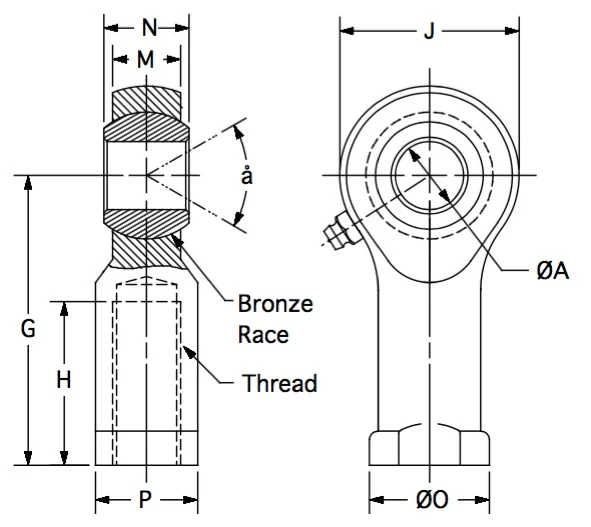

Drawing dimensions
| Threads | M8 x 1.25 RH |
|---|---|
| A | 8 |
| a° | 13 |
| G | 36 |
| H | 16 |
| J | 24 |
| M | 9 |
| N | 12 |
| O | 16 |
| P | 12.5 |
| Zerk | yes |
Lettered dimensions refer to the drawing for this part.
Product information
Application: DBF-series spherical rod ends may be assembled to a rod, pipe, tube, cylinder or cable connecting linkage to allow misalignment between two moving points. This series features a bronze bearing race and a zerk, making it ideal for multiple cycle applications.
Ball: chrome plated steel, surface hardened for wear resistance and plated for corrosion resistance.
