DBM-10Z-ZY

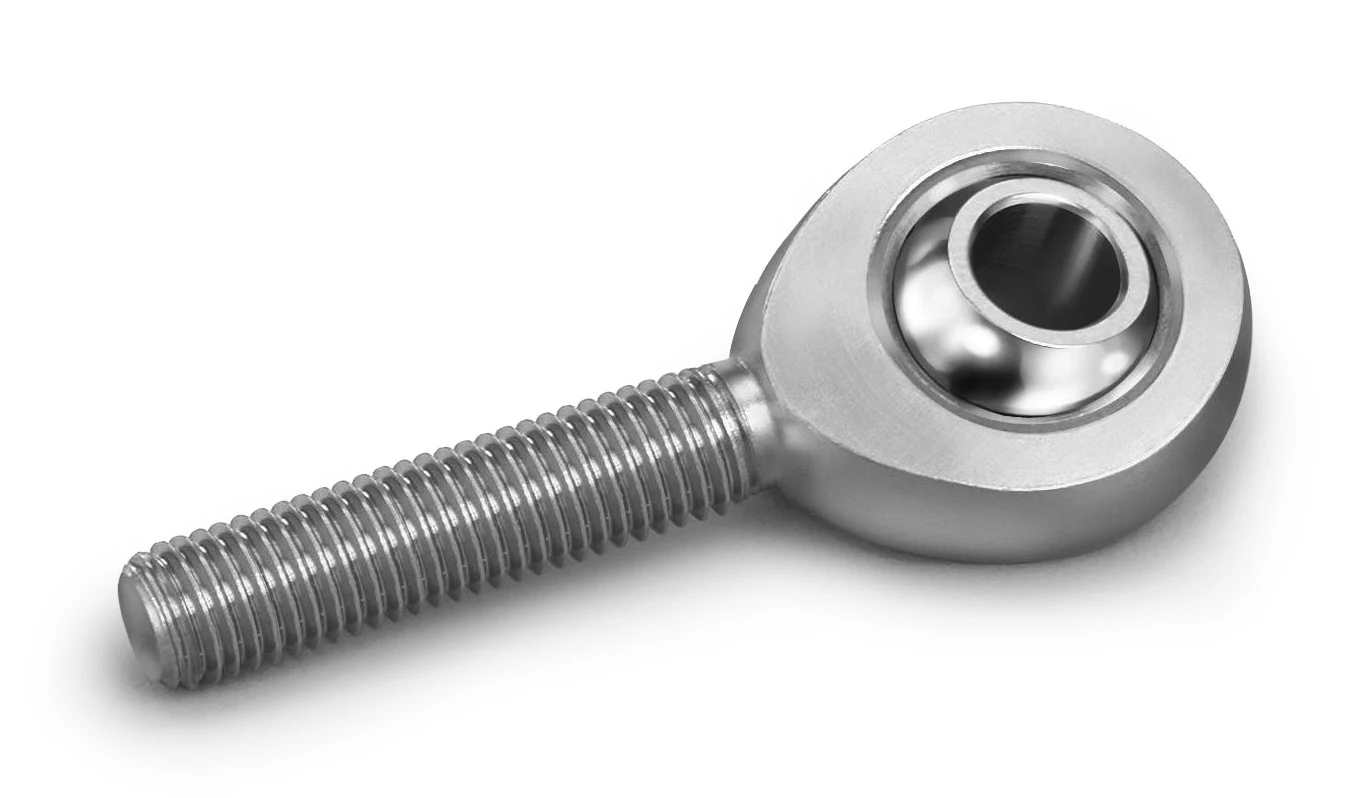

DBM-10Z-ZY, Bearings, Spherical Rod End, Male M10 x 1.50 RH Steel Housing, Bronze Race 10 mm Bore WITHOUT Grease Zerk
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.31 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M10 x 1.5 RH |
|---|---|
| Bore diameter | 10 mm |
| Housing construction | Steel |
| Race material | Bronze |
| Grease fitting | No |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.31 |
| 2+ | $2.81 |
| 3+ | $1.97 |
| 4+ | $1.56 |
| 5+ | $1.31 |
| 10+ | $0.81 |
| 25+ | $0.51 |
| 50+ | $0.32 |
| 100+ | $0.25 |
| 150+ | $0.23 |
| 300+ | $0.16 |
| 450+ | $0.16 |
| 600+ | $0.14 |
| 750+ | $0.14 |
| 900+ | $0.14 |
Drawing dimensions
| Threads | M10 x 1.50 RH |
|---|---|
| A | 10 |
| a° | 13 |
| G | 48 |
| H | 29 |
| J | 28 |
| L | 62 |
| M | 10.5 |
| N | 14 |
| Zerked? | No |
Lettered dimensions refer to the drawing for this part.
Product information
Application: DBM-series spherical rod ends may be assembled to a rod, pipe, tube, or cylinder connecting linkage to allow misalignment between two moving points. This series features a bronze bearing race and a zerk, making it ideal for multiple cycle applications.
Ball: chrome plated steel, surface hardened for wear resistance and plated for corrosion resistance.
