DBM-12Z, Bearings, Spherical Rod End, Male M12 x 1.75 RH Steel Housing, Bronze Race 12 mm Bore with Grease Zerk
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.23 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M12 x 1.75 RH |
|---|---|
| Bore diameter | 12 mm |
| Housing construction | Steel |
| Race material | Bronze |
| Grease fitting | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.23 |
| 2+ | $13.54 |
| 3+ | $12.71 |
| 4+ | $10.80 |
| 5+ | $10.55 |
| 10+ | $8.11 |
| 25+ | $6.02 |
| 50+ | $5.33 |
| 100+ | $4.98 |
| 300+ | $4.20 |
| 600+ | $3.59 |
| 1,500+ | $3.53 |
| 2,000+ | $3.52 |
Drawing dimensions
| Threads | M12 x 1.75 RH |
|---|---|
| A | 12 |
| a° | 13 |
| G | 54 |
| H | 33 |
| J | 32 |
| L | 70 |
| M | 12 |
| N | 16 |
| Zerked? | Yes |

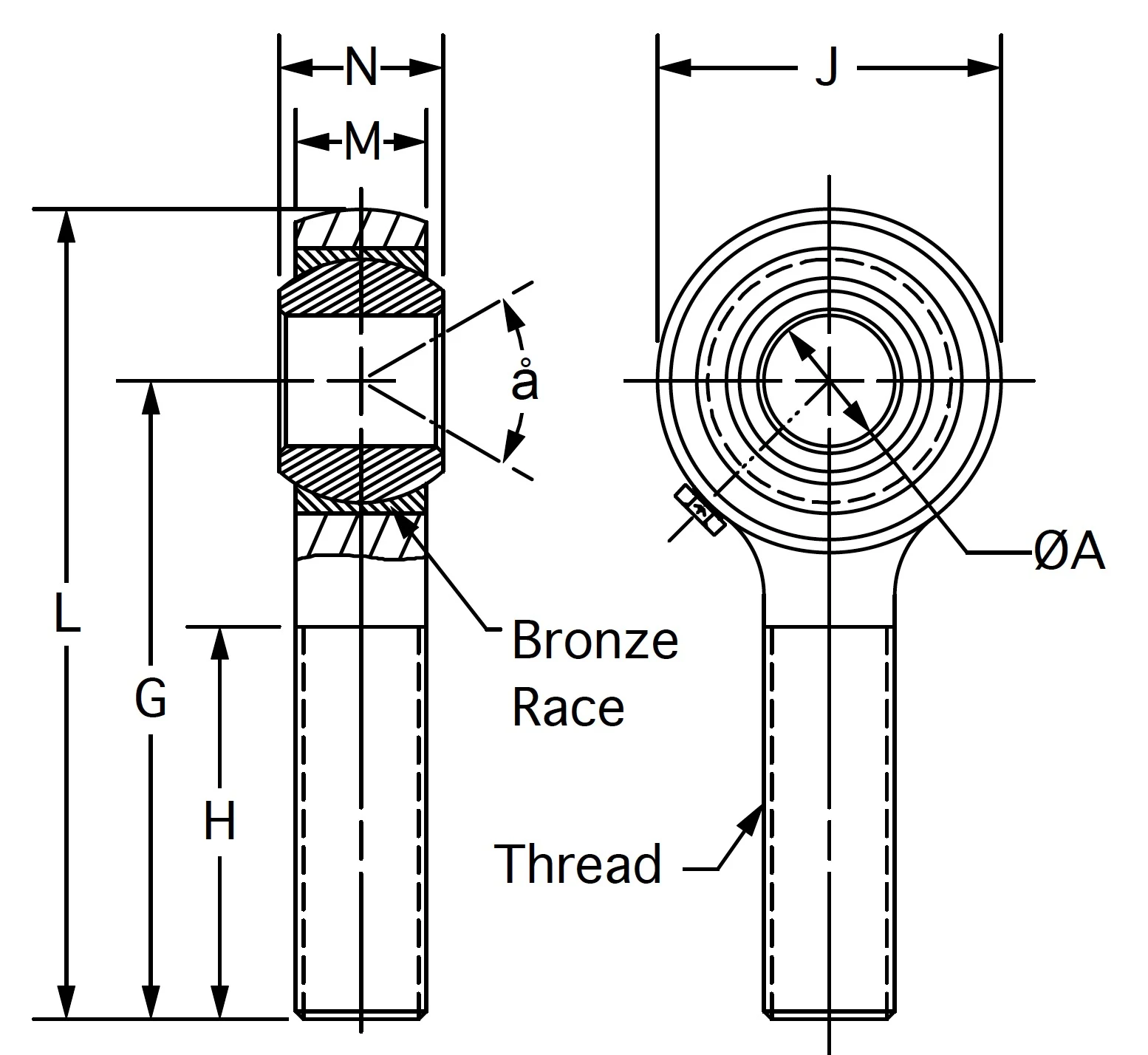

Lettered dimensions refer to the drawing for this part.
Product information
Application: DBM-series spherical rod ends may be assembled to a rod, pipe, tube, or cylinder connecting linkage to allow misalignment between two moving points. This series features a bronze bearing race and a zerk, making it ideal for multiple cycle applications.
Ball: chrome plated steel, surface hardened for wear resistance and plated for corrosion resistance.
