MCPBall Joints · Male
DC-4C-437-320
DC-4C-437-320, Ball Joints, Male 1/4-20 RH Housing 1/4-20 RH Stud Damper Control Set Screw Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.07 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/4-20 RH |
|---|---|
| Stud thread | 1/4-20 RH |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.07 |
| 2+ | $12.49 |
| 3+ | $11.66 |
| 4+ | $9.89 |
| 5+ | $9.64 |
| 10+ | $7.39 |
| 25+ | $5.47 |
| 50+ | $4.83 |
| 75+ | $4.80 |
| 100+ | $4.51 |
| 250+ | $3.80 |

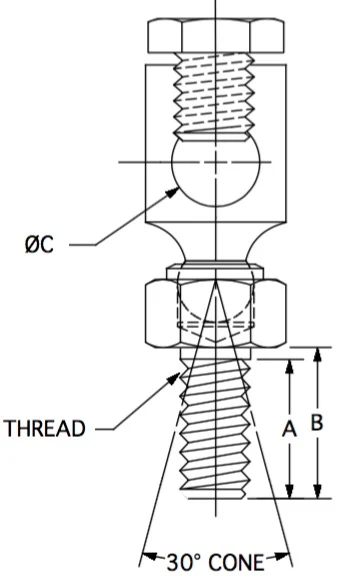

Drawing dimensions
| Threads | 1/4-20 RH |
|---|---|
| A | 0.328 |
| B | 0.437 |
| C | 0.320 |
| Plating | Zinc Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Application: DC-series Ball Joints act as a control swivel in a linkage system. The joint comes with a set screw for holding that can be used in conjuction with nuts if the connecting linkage is threaded.
Construction: low carbon steel, plated zinc yellow. Per SAE J490 Style 1.
Specials: Special sizes and configurations are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
