MCPBall Joints · Male
DH-4F-562-257
DH-4F-562-257, Ball Joints, Male 1/4-28 RH Housing 1/4-28 RH Stud Damper Control No Set Screw
3D CAD preview
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.90 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/4-28 RH |
|---|---|
| Stud thread | 1/4-28 RH |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.90 |
| 2+ | $8.58 |
| 3+ | $7.75 |
| 4+ | $6.74 |
| 5+ | $6.49 |
| 10+ | $5.25 |
| 25+ | $3.98 |
| 50+ | $2.99 |
| 100+ | $2.65 |
| 250+ | $2.39 |
| 500+ | $2.09 |
| 1,000+ | $1.79 |
| 1,500+ | $1.79 |
| 2,500+ | $1.75 |

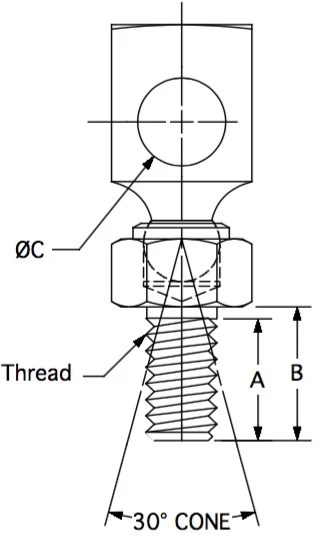

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 0.500 |
| B | 0.562 |
| C | 0.257 |
| Plating | Zinc Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Application: DC-series Ball Joints act as a control swivel in a linkage system. The joint comes with a set screw for holding that can be used in conjuction with nuts if the connecting linkage is threaded.
Construction: low carbon steel, plated zinc yellow. Per SAE J490 Style 1.
Specials: Special sizes and configurations are available in volume.
