MCPBall Joints · Female
DMC-10

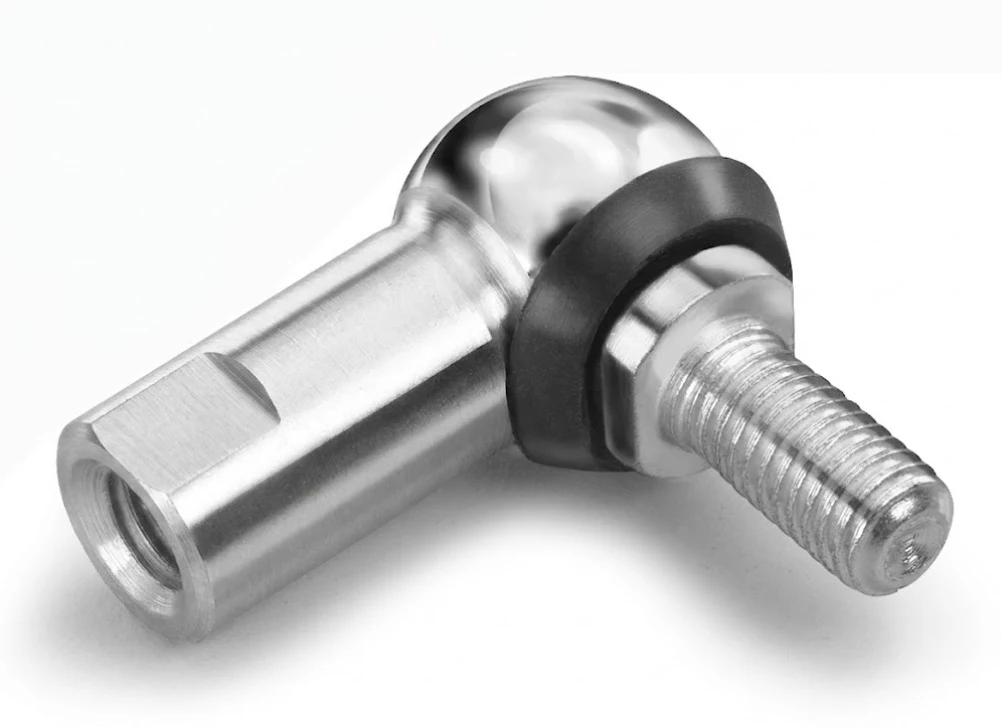

DMC-10, Ball Joints, Female M10 x 1.50 RH Housing M10 x 1.50 RH Stud Zinc Clear (Silver) Plating
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.63 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M10 x 1.5 RH |
|---|---|
| Stud thread | M10 x 1.5 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.63 |
| 2+ | $5.13 |
| 3+ | $4.30 |
| 4+ | $3.83 |
| 5+ | $3.58 |
| 10+ | $2.30 |
| 30+ | $1.58 |
| 50+ | $1.33 |
| 100+ | $1.17 |
| 200+ | $0.88 |
| 400+ | $0.78 |
| 600+ | $0.73 |

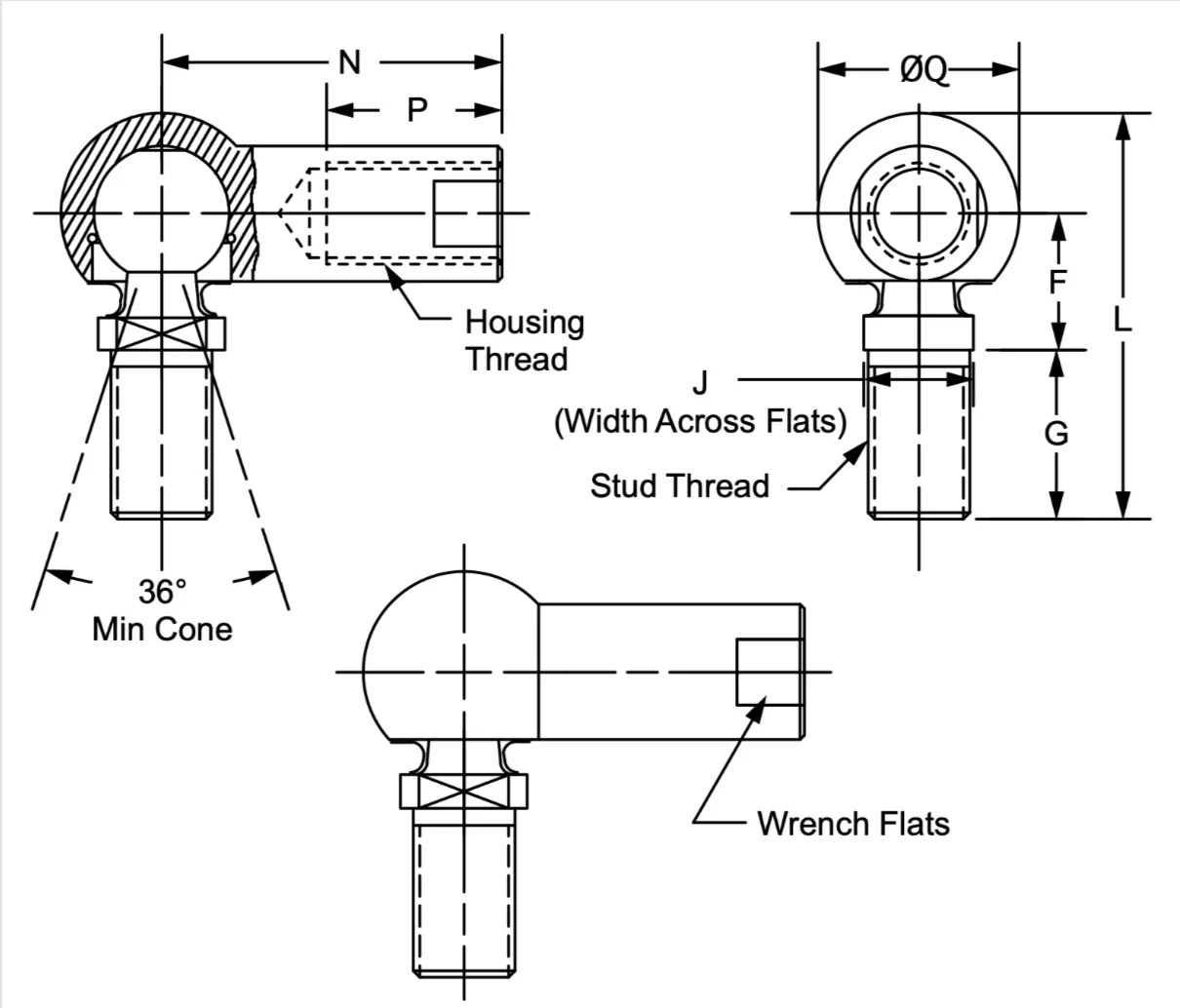

Drawing dimensions
| Threads | M10 x 1.50 RH |
|---|---|
| F | 16 |
| G | 20.0 |
| J | 13 |
| L | 40.75 |
| N | 35 |
| P | 15.5 |
| Q | 24.0 |
| J | internal |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Ball Joints are typically assembled to the end of a rod, pipe, tube or cable linkage to provide misalignment between two moving points.
Construction: low carbon steel, per DIN 71802.
Plating: zinc clear
Specials: Special sizes and configurations are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
