MCPBall Joints · Female
DMCS-5
DMCS-5, Ball Joints, Female M5 x 0.80 RH Housing M5 x 0.80 RH Stud Zinc Clear (Silver) Plating
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.90 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M5 x 0.8 RH |
|---|---|
| Stud thread | M5 x 0.8 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.90 |
| 2+ | $3.40 |
| 3+ | $2.57 |
| 4+ | $2.15 |
| 5+ | $1.90 |
| 10+ | $1.39 |
| 30+ | $0.79 |
| 50+ | $0.66 |
| 100+ | $0.47 |
| 250+ | $0.40 |
| 350+ | $0.31 |
| 1,400+ | $0.27 |
| 2,100+ | $0.25 |
| 3,500+ | $0.21 |

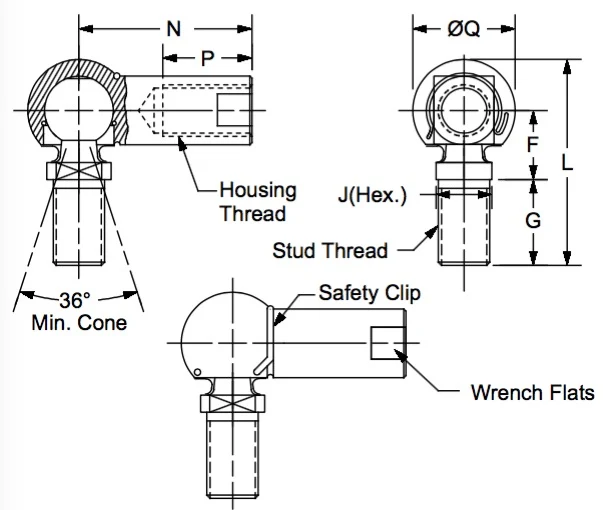

Drawing dimensions
| Threads | M5 x 0.80 RH |
|---|---|
| F | 9 |
| G | 10.2 |
| J | 8 |
| L | 22.30 |
| N | 22 |
| P | 10.2 |
| Q | 12.8 |
| J | external |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Ball Joints are typically assembled to the end of a rod, pipe, tube or cable linkage to provide misalignment between two moving points.
Construction: low carbon steel, per DIN 71802.
Plating: zinc clear
Specials: Special sizes and configurations are available in volume.
