MCPBall Joints · Female
DMCS-8

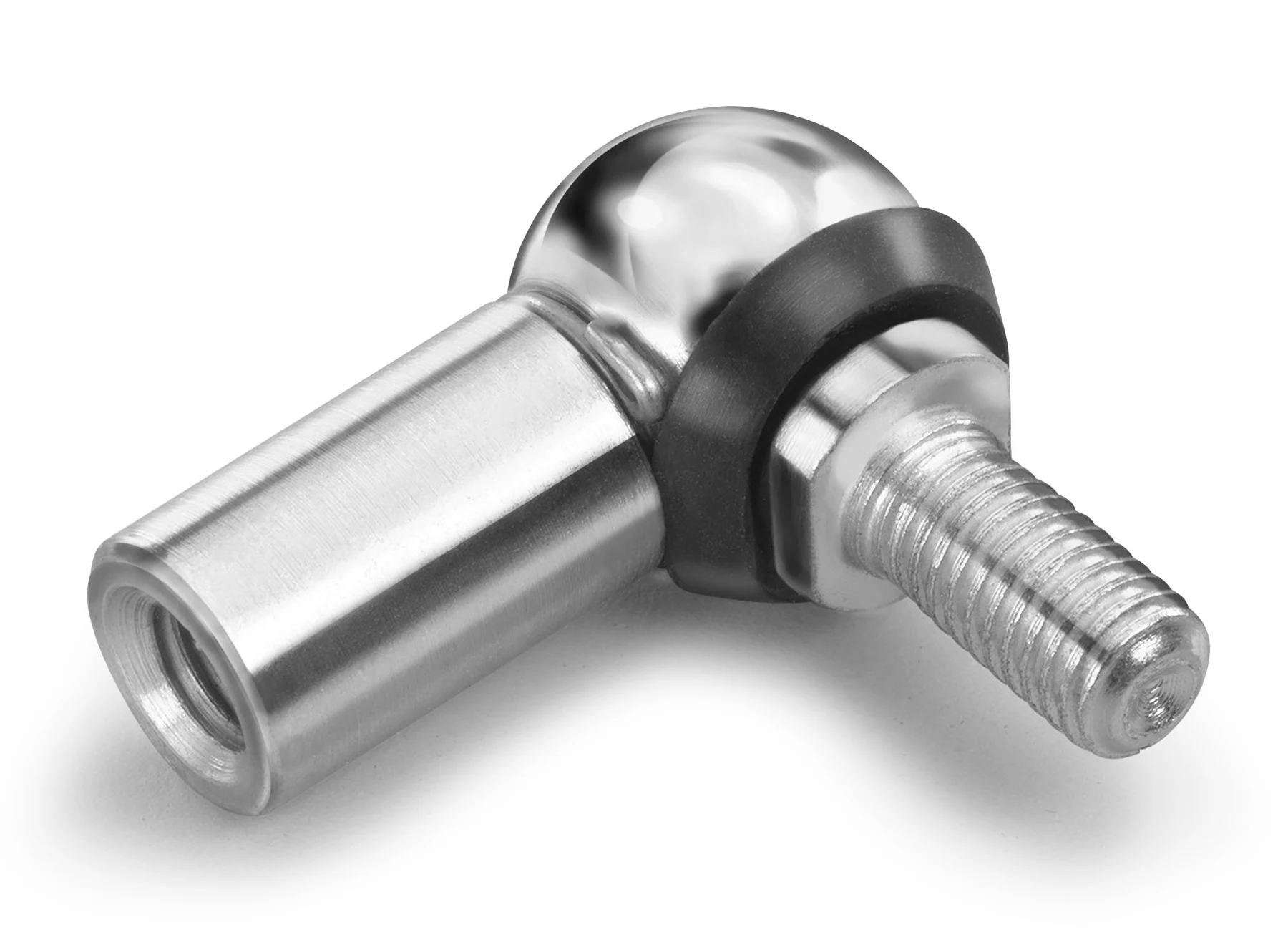

DMCS-8, Ball Joints, Female M8 x 1.25 RH Housing M8 x 1.25 RH Stud Zinc Clear (Silver) Plating
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.49 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M8 x 1.25 RH |
|---|---|
| Stud thread | M8 x 1.25 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.49 |
| 2+ | $9.86 |
| 3+ | $6.78 |
| 4+ | $6.37 |
| 5+ | $5.62 |
| 10+ | $4.50 |
| 25+ | $3.39 |
| 50+ | $2.54 |
| 80+ | $2.50 |
| 200+ | $2.21 |
| 400+ | $2.01 |
| 600+ | $1.75 |
| 800+ | $1.75 |
| 1,600+ | $1.50 |

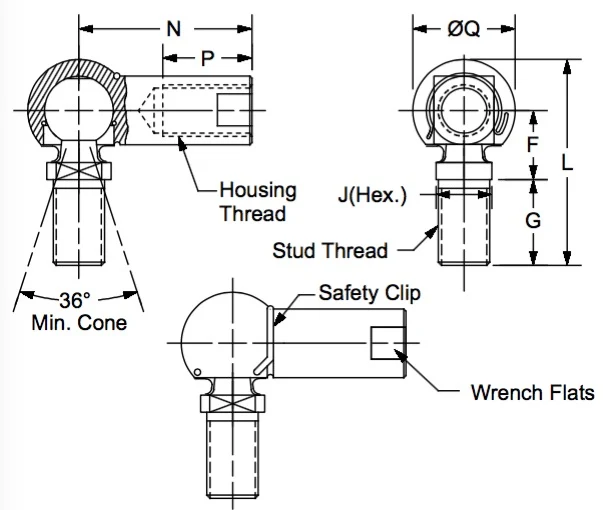

Drawing dimensions
| Threads | M8 x 1.25 RH |
|---|---|
| F | 13 |
| G | 16.5 |
| J | 11 |
| L | 39.20 |
| N | 30 |
| P | 14.0 |
| Q | 19.3 |
| Clip | external |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Ball Joints are typically assembled to the end of a rod, pipe, tube or cable linkage to provide misalignment between two moving points.
Construction: low carbon steel, per DIN 71802.
Plating: zinc clear
Specials: Special sizes and configurations are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
