Ball Joints · Female

DMH-5

DMH-5, Ball Joints, Female M5 x 0.80 RH Housing M5 x 0.80 RH Stud Hex Shaped Barrel Zinc Clear (Silver) Plating

Product image

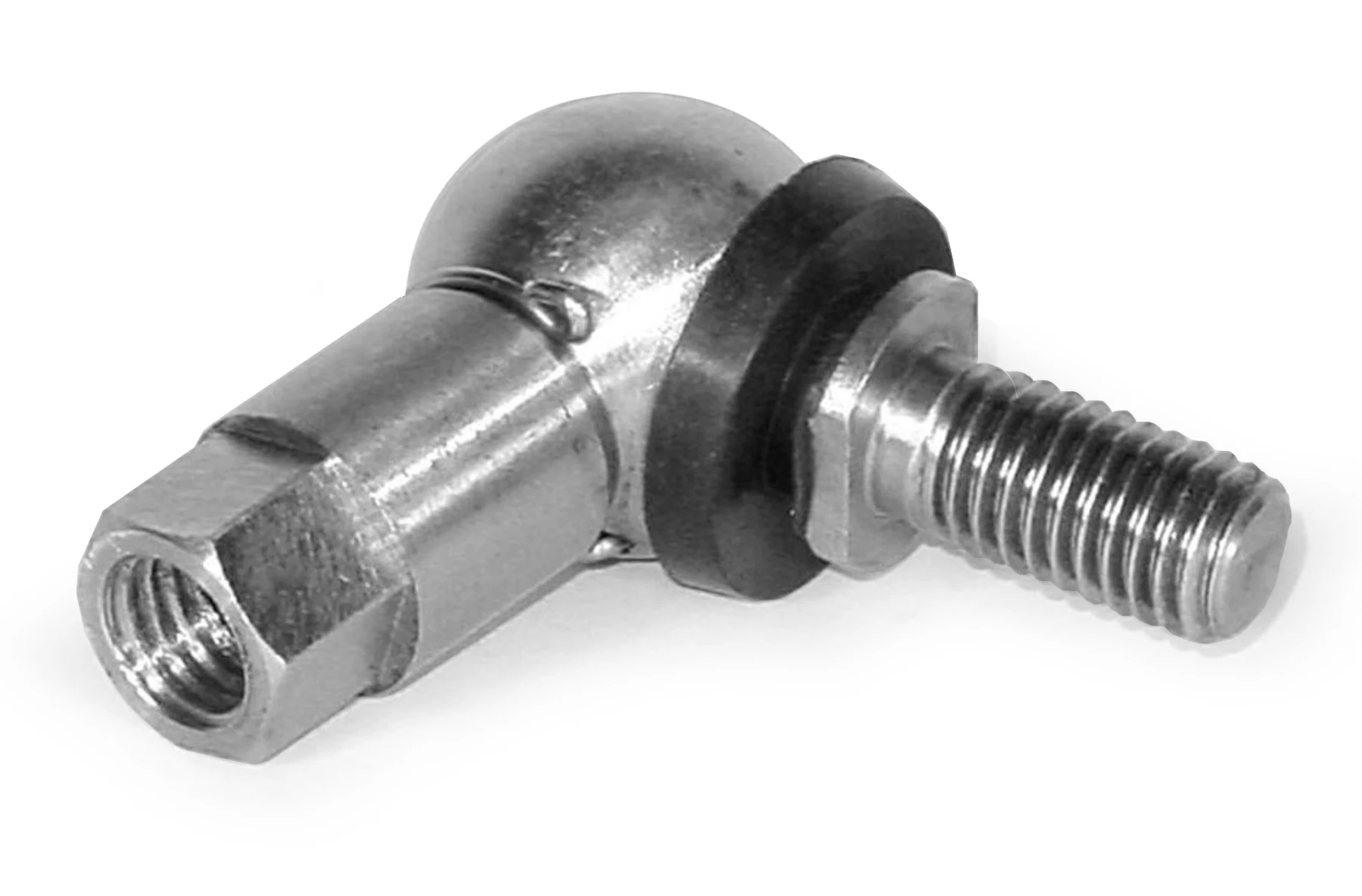

DMH-5 product image
Dimension drawing 1

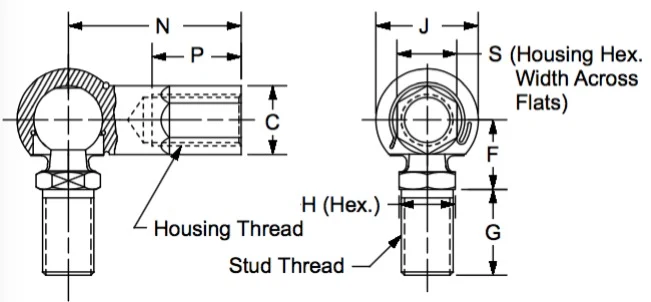

DMH-5 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$10.22 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Housing threadM5 x 0.8 RH
Stud threadM5 x 0.8 RH
Finish / platingPlated Steel

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$10.22
2+$7.63
3+$5.24
5+$4.57
10+$3.72
30+$2.39
50+$2.32
100+$1.75
200+$1.55
350+$1.46
700+$1.23
1,050+$1.23
2,100+$1.04

Drawing dimensions

Housing ThreadsM5 x 0.80 RH
Stud ThreadsM5 x 0.80 RH
FinishPlated Steel
C8
F9
G10.2
H (Hex)8
J Ø12.8
N22
P10.2
S (Hex)7

Lettered dimensions refer to the drawing for this part.

Product information

Construction: low carbon steel, per DIN 71802. Plating: zinc clear Special Feature: hex shaped wrench flats (spanner) on barrel. Specials: Special sizes and configurations are available in quantities of 100 pieces or more.
