MCPBall Joints · Male
DMMCS-10

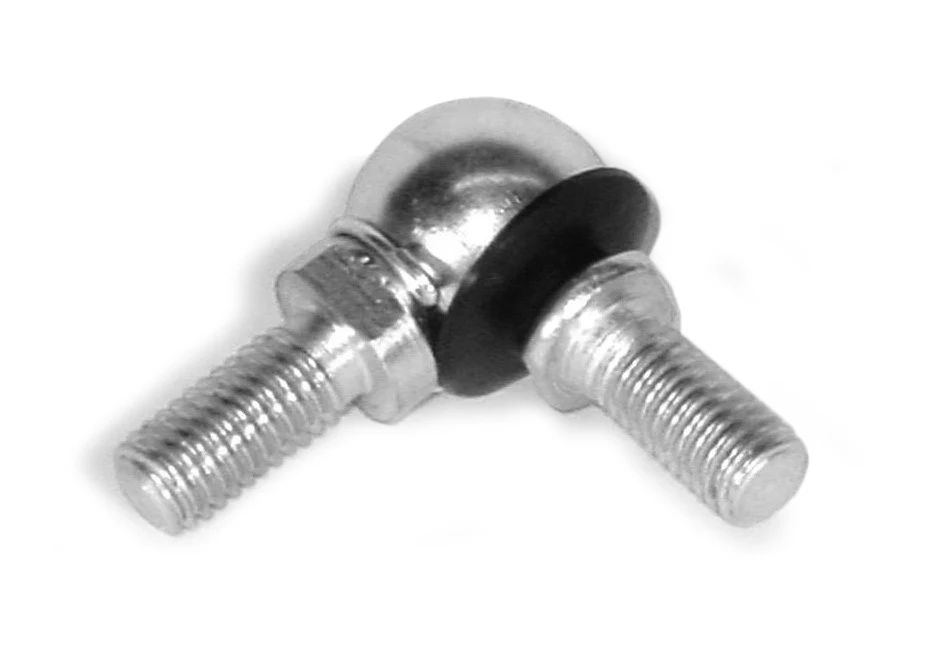

DMMCS-10, Ball Joints, Male M10 x 1.50 RH Housing M10 x 1.50 RH Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.17 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M10 x 1.5 RH |
|---|---|
| Stud thread | M10 x 1.5 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $19.17 |
| 2+ | $12.35 |
| 3+ | $10.56 |
| 4+ | $10.14 |
| 5+ | $8.69 |
| 10+ | $7.23 |
| 20+ | $6.38 |
| 30+ | $4.86 |
| 60+ | $4.29 |
| 120+ | $4.01 |
| 240+ | $3.39 |
| 360+ | $3.38 |
| 480+ | $2.90 |
| 900+ | $2.89 |

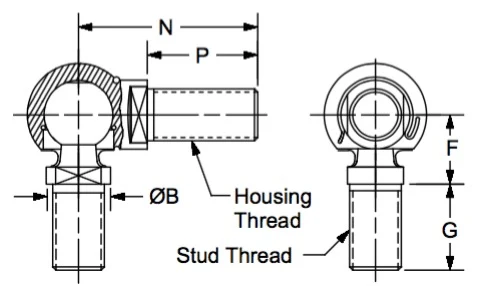

Drawing dimensions
| Housing Threads | M10 x 1.50 RH |
|---|---|
| Stud Threads | M10 x 1.50 RH |
| B | 16 |
| F | 16 |
| G | 20.0 |
| N | 37.5 |
| P | 21.5 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: low carbon steel, per DIN 71802
Plating: zinc clear
Series: this unique male series compliments the female DMCS series
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
