MCPBall Joints · Male
DMMCS-5
DMMCS-5, Ball Joints, Male M5 x 0.80 RH Housing M5 x 0.80 RH Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$15.66 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M5 x 0.8 RH |
|---|---|
| Stud thread | M5 x 0.8 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $15.66 |
| 2+ | $12.12 |
| 3+ | $11.29 |
| 4+ | $9.57 |
| 5+ | $9.32 |
| 10+ | $7.13 |
| 30+ | $5.24 |
| 50+ | $4.65 |
| 100+ | $4.34 |
| 200+ | $3.67 |
| 300+ | $3.66 |
| 400+ | $3.13 |
| 500+ | $3.13 |

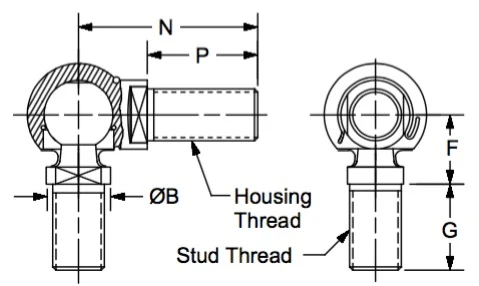

Drawing dimensions
| Housing Threads | M5 x 0.80 RH |
|---|---|
| Stud Threads | M5 x 0.80 RH |
| B | 8 |
| F | 9 |
| G | 10.2 |
| N | 22.5 |
| P | 12.0 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: low carbon steel, per DIN 71802
Plating: zinc clear
Series: this unique male series compliments the female DMCS series
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
