MCPBall Joints · Female
DMN-8

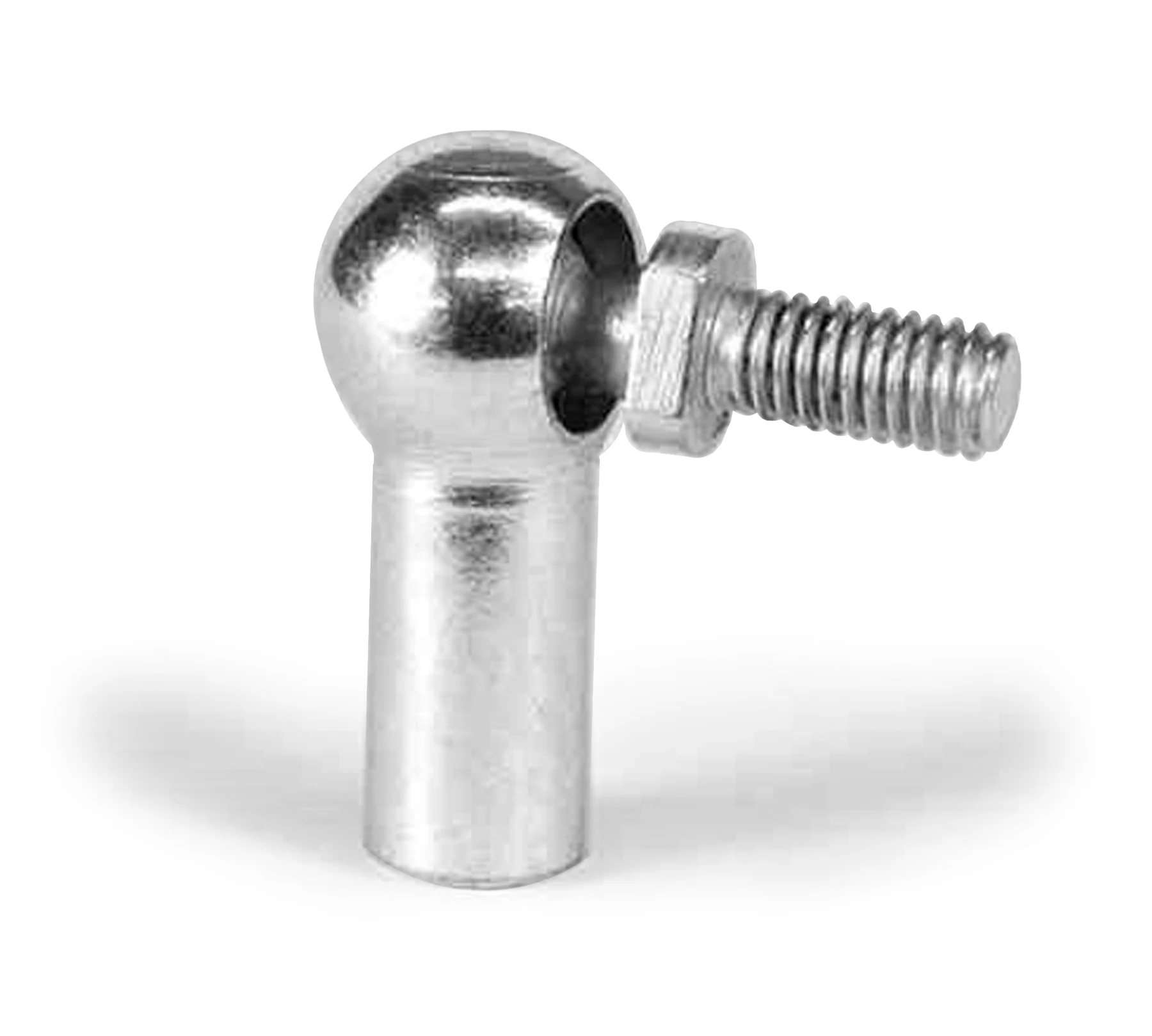

DMN-8, Ball Joints, Female M8 x 1.25 RH Housing M8 x 1.25 RH Stud Nylon Bearing Race
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.28 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M8 x 1.25 RH |
|---|---|
| Stud thread | M8 x 1.25 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.28 |
| 2+ | $3.78 |
| 3+ | $2.94 |
| 4+ | $2.53 |
| 5+ | $2.28 |
| 10+ | $1.76 |
| 25+ | $0.99 |
| 50+ | $0.79 |
| 100+ | $0.65 |
| 200+ | $0.57 |
| 400+ | $0.43 |
| 600+ | $0.38 |
| 1,000+ | $0.38 |
| 1,400+ | $0.35 |
| 1,800+ | $0.34 |

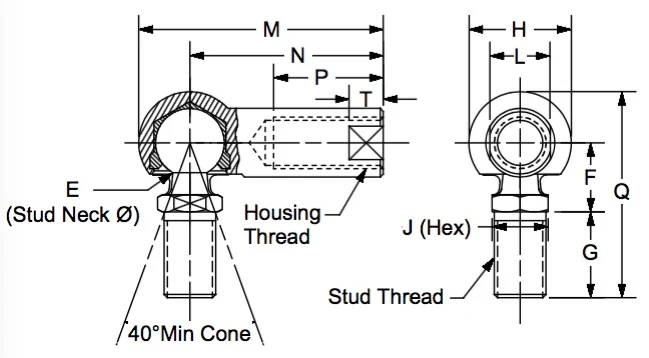

Drawing dimensions
| Housing Threads | M8 x 1.25 RH |
|---|---|
| Stud Threads | M8 x 1.25 RH |
| E | 6.5 |
| F | 13 |
| G | 16.5 |
| H | 21 |
| J | 11 |
| L | 11 |
| M | 40 |
| N | 30 |
| P | 14 |
| Q | 40.0 |
| T | 8 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: low carbon steel, per DIN 71802
Plating: zinc clear
Bearing Race: Nylon
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
