MCPBall Joints · Female
DMQ-6

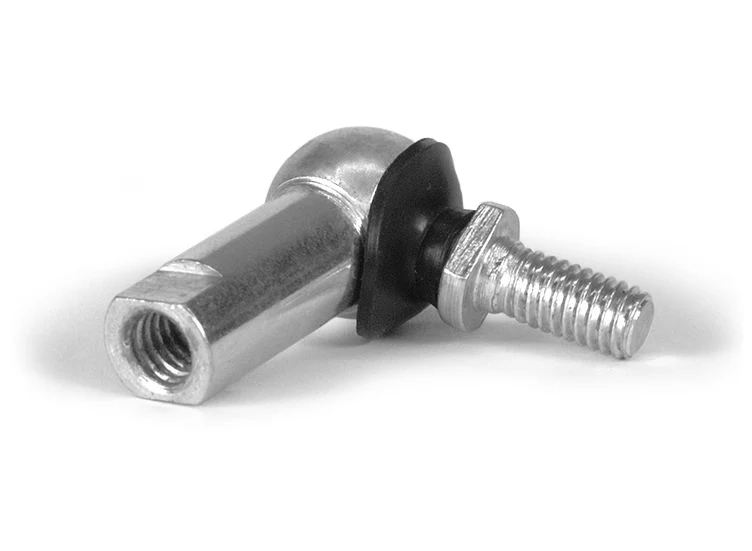

DMQ-6, Ball Joints, Female M6 x 1.00 RH Housing M6 x 1.00 RH Stud Zinc Clear (Silver) Plating
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.16 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M6 x 1 RH |
|---|---|
| Stud thread | M6 x 1 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $19.16 |
| 2+ | $12.34 |
| 3+ | $10.55 |
| 4+ | $10.13 |
| 5+ | $8.68 |
| 10+ | $7.22 |
| 25+ | $4.88 |
| 50+ | $4.30 |
| 100+ | $4.25 |
| 200+ | $3.87 |
| 400+ | $3.38 |

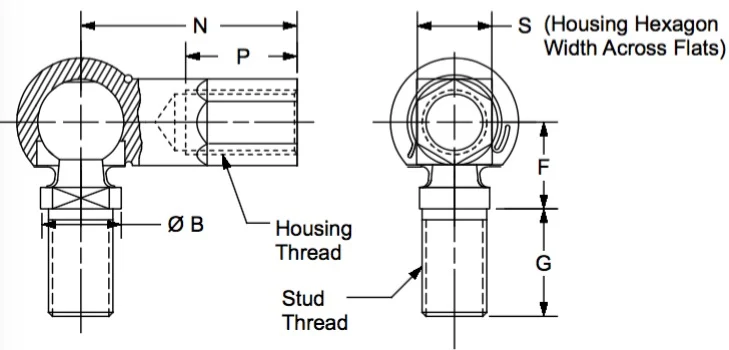

Drawing dimensions
| Housing Threads | M6 x 1.00 RH |
|---|---|
| Stud Threads | M6 x 1.00 RH |
| B | 10 |
| F | 11 |
| G | 12.5 |
| N | 25 |
| P | 11.5 |
| S | 9 |
Lettered dimensions refer to the drawing for this part.
Product information
DMQ series: this series features an external clip which allows for easy ball stud removal or assembly.
Application: Ball Joints are typically assembled to the end of a rod, pipe, tube or cable linkage to provide misalignment between two moving points.
Construction: low carbon steel, per DIN 71802
Plating: zinc clear
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
