MCPBall Joints · Female
DMQBHL-5
DMQBHL-5, Ball Joints, Female M5 x 0.80 LH Housing Stud Not Included Zinc Clear (Silver) Plating
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M5 x 0.8 LH |
|---|---|
| Stud included | No |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.20 |
| 2+ | $5.70 |
| 3+ | $4.81 |
| 4+ | $4.39 |
| 5+ | $3.18 |
| 10+ | $2.47 |
| 25+ | $1.90 |
| 50+ | $1.46 |
| 100+ | $1.09 |

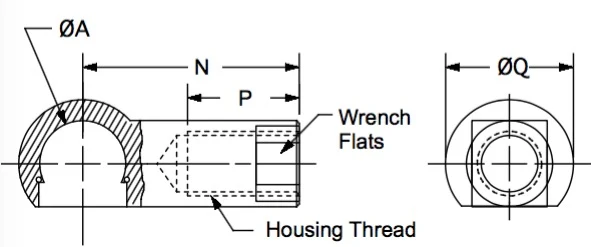

Drawing dimensions
| Threads | M5 x 0.80 LH |
|---|---|
| A | 8.04 |
| N | 22 |
| P | 10.2 |
| Q | 12.8 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: DMQBH ball joints are used in light linkage applications where it is desired to have the ability to be able to remove the ball stud. The DMQBH ball joint is supplied LESS the ball stud and retaining clip.
Construction: low carbon steel, per DIN 71802
Plating: zinc clear
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
