MCPBearings, Spherical Rod End · Female
DPF-6

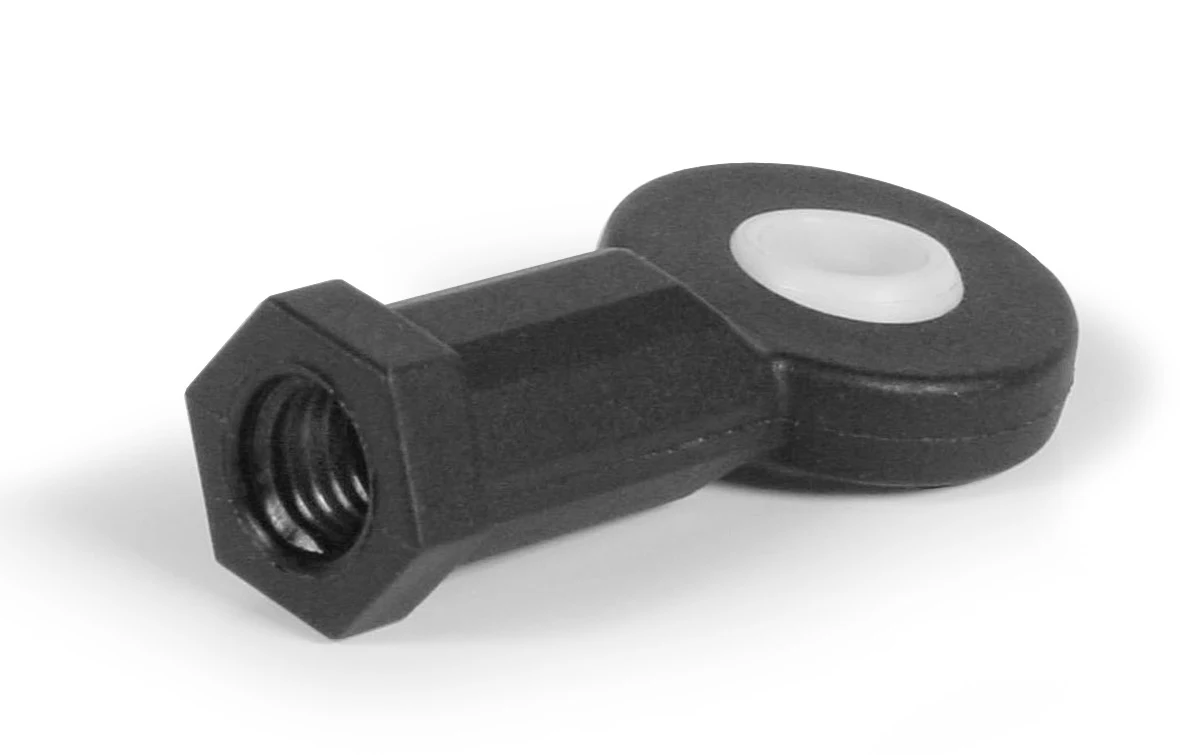

DPF-6, Bearings, Spherical Rod End, Female M6 x 1.00 RH Polymer (Plastic) Housing and Ball
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.00 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M6 x 1 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.00 |
| 2+ | $5.50 |
| 3+ | $4.62 |
| 4+ | $4.20 |
| 5+ | $3.05 |
Drawing dimensions
| Threads | M6 x 1.00 RH |
|---|---|
| A | 6.0 |
| C | 40.0 |
| G | 30.0 |
| H | 12.0 |
| J | 20.0 |
| M | 7.0 |
| N | 9.0 |
| J | 20 |
| P | 11.0 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Polymer
Application: Light Duty
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
