MCPBearings, Spherical Rod End · Male
DPML-8

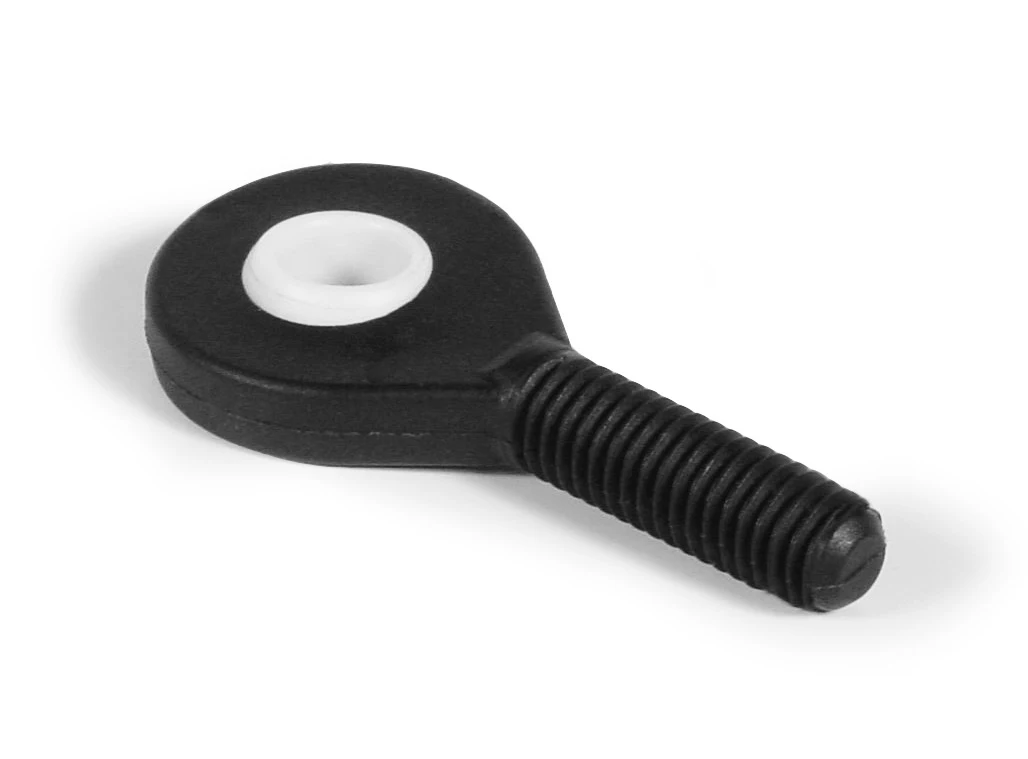

DPML-8, Bearings, Spherical Rod End, Male M8 x 1.25 LH Polymer (Plastic) Housing and Ball
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$24.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M8 x 1.25 LH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $24.20 |
| 2+ | $19.10 |
| 3+ | $16.20 |
| 4+ | $15.78 |
| 5+ | $14.23 |
Drawing dimensions
| Threads | M8 x 1.25 LH |
|---|---|
| A | 8.0 |
| G | 42.0 |
| H | 25.0 |
| J | 24.0 |
| M | 9.0 |
| N | 12.0 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Polymer
Application: Light Duty
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
