MCPBearings, Spherical Rod End · Female
DSTF-5

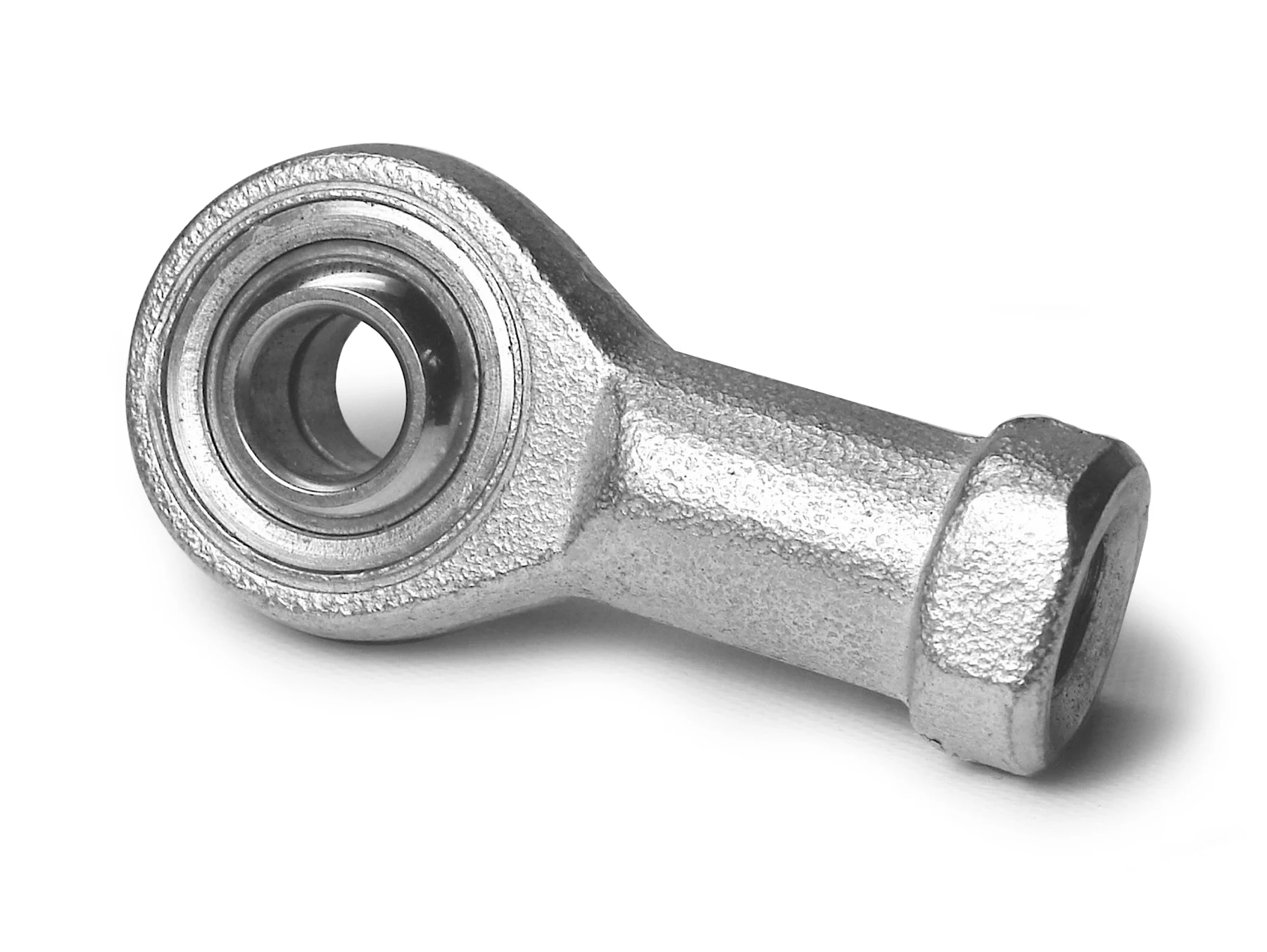

DSTF-5, Bearings, Spherical Rod End, Female M5 x 0.80 RH Stainless Housing, PTFE Race 300 Series Stainless
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$25.96 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M5 x 0.8 RH |
|---|---|
| Housing construction | Stainless |
| Race material | PTFE |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $25.96 |
| 2+ | $20.63 |
| 3+ | $17.53 |
| 4+ | $17.11 |
| 5+ | $15.45 |
| 10+ | $11.55 |
| 25+ | $10.11 |
| 50+ | $9.45 |
| 75+ | $9.13 |

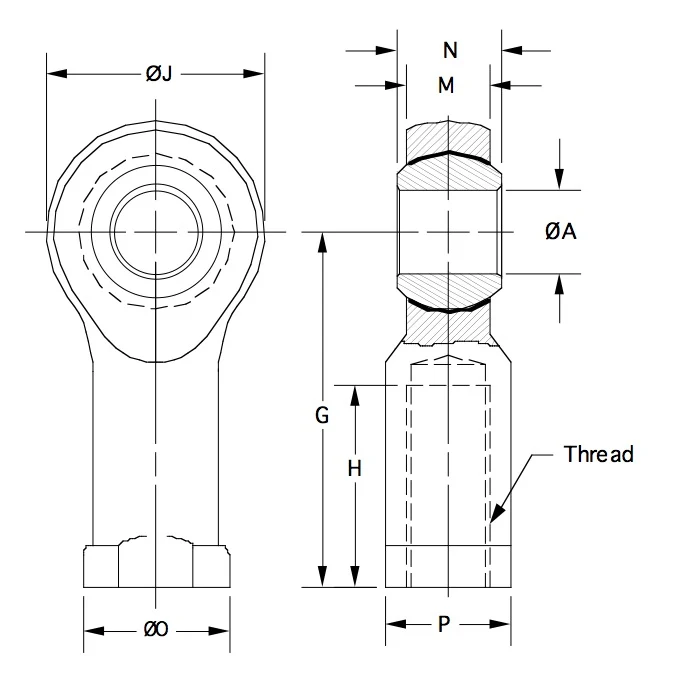

Drawing dimensions
| Threads | M5 x 0.80 RH |
|---|---|
| A | 5.00 |
| G | 27.0 |
| H | 9.0 |
| J | 18.0 |
| M | 6.00 |
| N | 8.00 |
| O | 11.0 |
| P | 9.0 |
| A° | 26° |
| Ultimate Radial Static Load Rating (Lbs) | 957 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Brass with ptfe liner
Ball: Heat treated, stainless steel
Housing: 300 series stainless steel
