MCPBearings, Spherical Rod End · Female
DXTF-10X

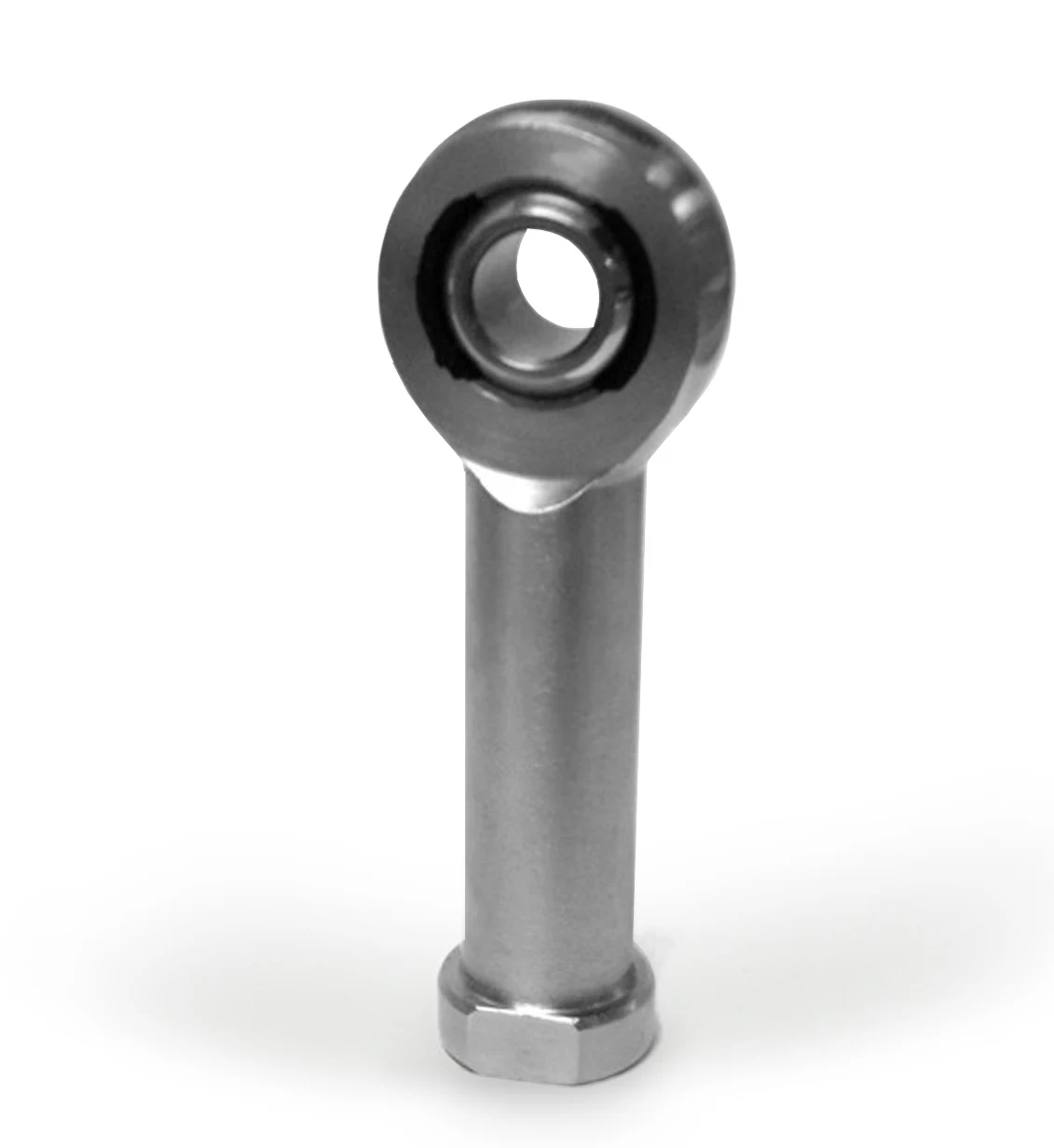

DXTF-10X, Bearings, Spherical Rod End, Female M10 x 1.50 RH Chrome Moly Housing, Slotted Nylon Race Extra Long Housing
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$38.31 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M10 x 1.5 RH |
|---|---|
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $38.31 |
| 2+ | $27.71 |
| 3+ | $24.63 |
| 4+ | $24.21 |
| 5+ | $23.96 |
| 10+ | $18.06 |
| 20+ | $16.01 |
| 40+ | $14.53 |
| 80+ | $12.67 |
| 160+ | $10.84 |
| 240+ | $10.83 |
| 480+ | $10.64 |
Drawing dimensions
| Threads | M10 x 1.50 RH |
|---|---|
| A | 10 |
| G | 68 |
| H | 45 |
| J | 28.5 |
| M | 10.5 |
| N | 14 |
| O | 19 |
| P | 15 |
| Ultimate Radial Static Load Rating | 11,486 lbs |
Lettered dimensions refer to the drawing for this part.
Product information
Material: 4130 chrome moly
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
