DXTF-12
DXTF-12, Bearings, Spherical Rod End, Female M12 x 1.75 RH Chrome Moly Housing, Slotted Nylon Race
3D CAD preview
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$42.19 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M12 x 1.75 RH |
|---|---|
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $42.19 |
| 2+ | $35.04 |
| 3+ | $31.31 |
| 4+ | $30.89 |
| 6+ | $23.49 |
| 8+ | $23.29 |
| 10+ | $20.84 |
| 20+ | $20.59 |
| 25+ | $19.38 |
| 50+ | $16.38 |
| 100+ | $14.00 |
| 200+ | $13.98 |
| 500+ | $13.72 |

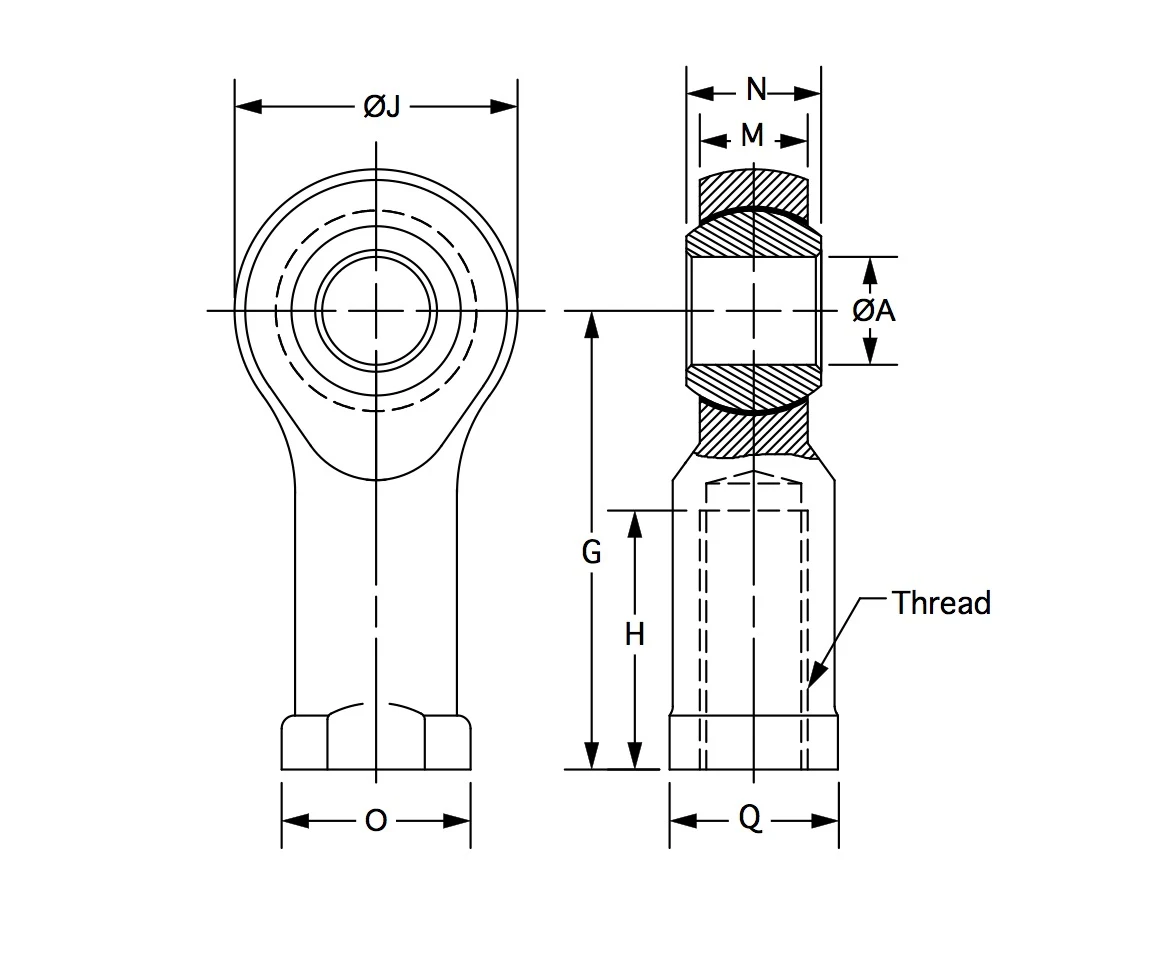

Drawing dimensions
| Threads | M12 x 1.75 RH |
|---|---|
| A | 12 |
| G | 50 |
| H | 22 |
| J | 32.5 |
| M | 12 |
| N | 16 |
| O | 22 |
| P | 17.5 |
| Ultimate Radial Static Load Rating | 13,720 lbs |
Lettered dimensions refer to the drawing for this part.
Product information
Material: 4130 chrome moly
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
