DXTF-16
DXTF-16, Bearings, Spherical Rod End, Female M16 x 2.00 RH Chrome Moly Housing, Slotted Nylon Race
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$27.83 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M16 x 2 RH |
|---|---|
| Housing construction | Chrome Moly |
| Race material | Slotted Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $27.83 |
| 2+ | $22.25 |
| 3+ | $18.95 |
| 4+ | $18.53 |
| 8+ | $16.37 |
| 16+ | $12.35 |
| 30+ | $10.98 |
| 60+ | $9.96 |
| 90+ | $8.71 |
Drawing dimensions
| Threads | M16 x 2.00 RH |
|---|---|
| A | 16 |
| G | 64 |
| H | 28 |
| J | 42.5 |
| M | 15 |
| N | 21 |
| O | 27 |
| P | 22 |
| Ultimate Radial Static Load Rating | 27,245 lbs |

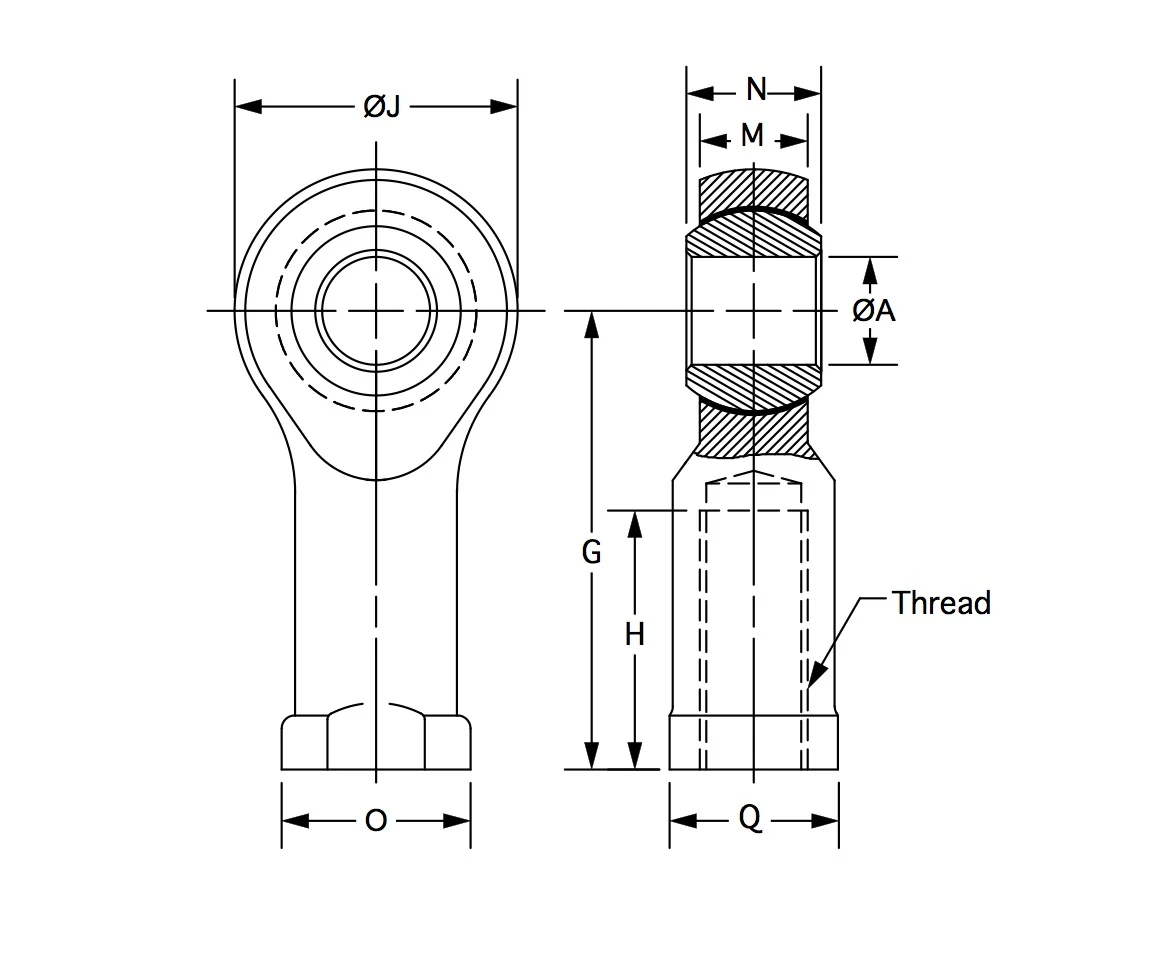

Lettered dimensions refer to the drawing for this part.
Product information
Material: 4130 chrome moly
Bearing Race: nylon
Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
