MCPBall Joints · Female
E187
E187, Ball Joints, Female 10-32 RH Housing 10-32 RH Stud Plated Zinc Yellow

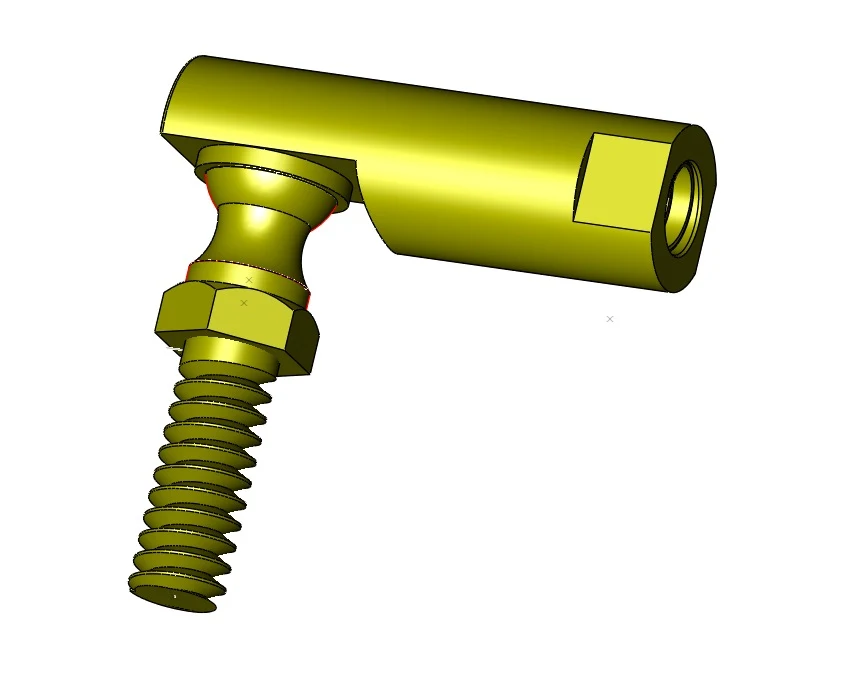

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.88 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 10-32 RH |
|---|---|
| Stud thread | 10-32 RH |
| Finish / plating | Yellow |
| Dust shield | No |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.88 |
| 2+ | $6.38 |
| 3+ | $5.49 |
| 4+ | $3.90 |
| 5+ | $3.65 |
| 10+ | $2.89 |
| 30+ | $1.98 |
| 50+ | $1.75 |
| 100+ | $1.31 |
| 250+ | $1.15 |
| 300+ | $1.15 |
| 500+ | $1.08 |
| 1,000+ | $0.92 |
Drawing dimensions
| Housing Threads | 10-32 RH |
|---|---|
| Stud Threads | 10-32 RH |
| Dust Shield | No |
| F | 0.438 |
| G | 0.438 |
| J | 0.313 |
| L | 0.375 |
| M | 1.063 |
| N | 0.875 |
| P | 0.438 |
| Finish | Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: low carbon steel, plated and dichromate treated for corrosion resistance. Bearing cavity filled with high wear lubricant. SAE J490 Type G Style 2
Options: Dust shields (add "S" before the size, ie ES375), and left hand threads (add an "L" before the size, ie ESL375).
Specials: specials are available in quantities of 100 pieces or more.
