MCPBall Joints · Female
E312

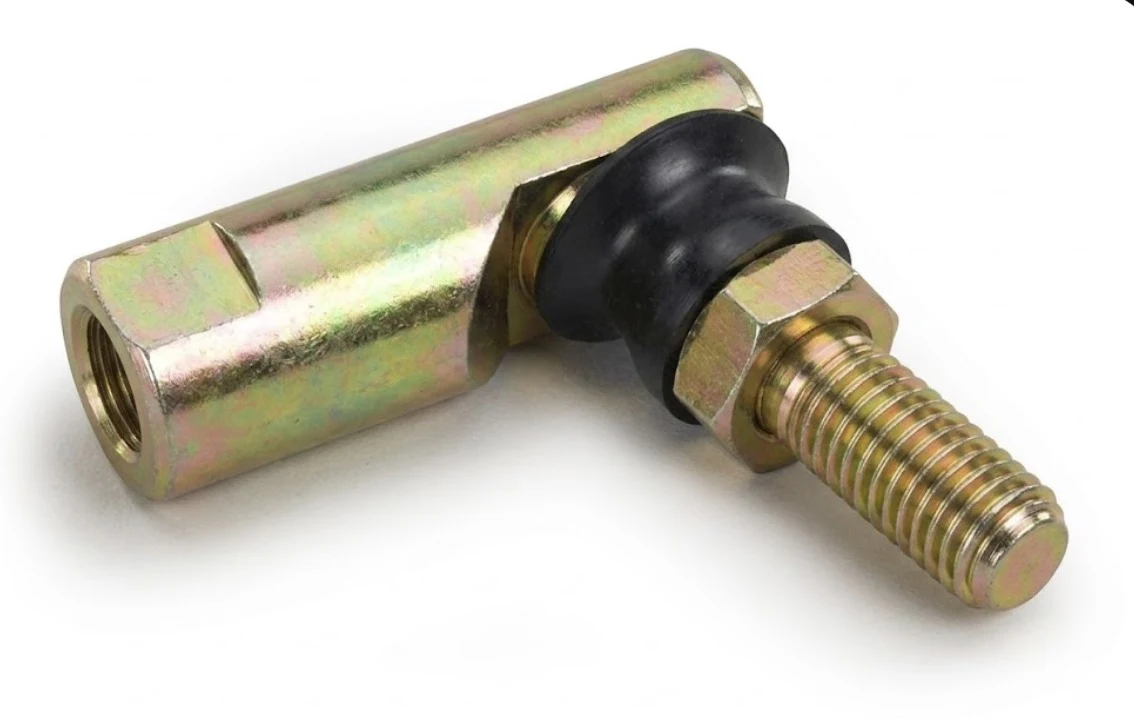

E312, Ball Joints, Female 5/16-24 RH Housing 5/16-24 RH Stud Plated Zinc Yellow

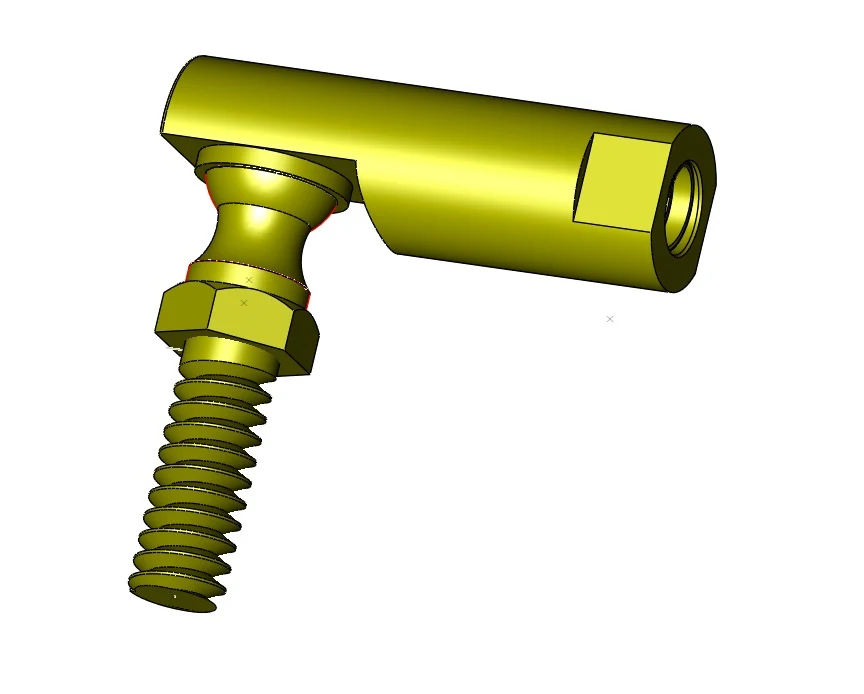

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.90 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 5/16-24 RH |
|---|---|
| Stud thread | 5/16-24 RH |
| Finish / plating | Yellow |
| Dust shield | No |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.90 |
| 2+ | $6.40 |
| 3+ | $5.51 |
| 4+ | $3.92 |
| 5+ | $3.67 |
| 10+ | $2.91 |
| 25+ | $2.02 |
| 50+ | $1.76 |
| 100+ | $1.32 |
| 300+ | $1.16 |
| 600+ | $1.05 |
| 900+ | $0.92 |
| 1,500+ | $0.91 |

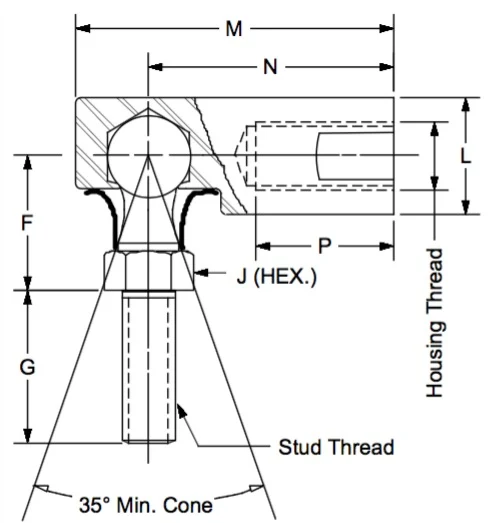

Drawing dimensions
| Housing Threads | 5/16-24 RH |
|---|---|
| Stud Threads | 5/16-24 RH |
| Dust Shield | No |
| F | 0.531 |
| G | 0.688 |
| J | 0.438 |
| L | 0.500 |
| M | 1.406 |
| N | 1.125 |
| P | 0.563 |
| Finish | Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: low carbon steel, plated and dichromate treated for corrosion resistance. Bearing cavity filled with high wear lubricant. SAE J490 Type G Style 2
Options: Dust shields (add "S" before the size, ie ES375), and left hand threads (add an "L" before the size, ie ESL375).
Specials: specials are available in quantities of 100 pieces or more.
