MCPBall Joints · Male
EMS375-4

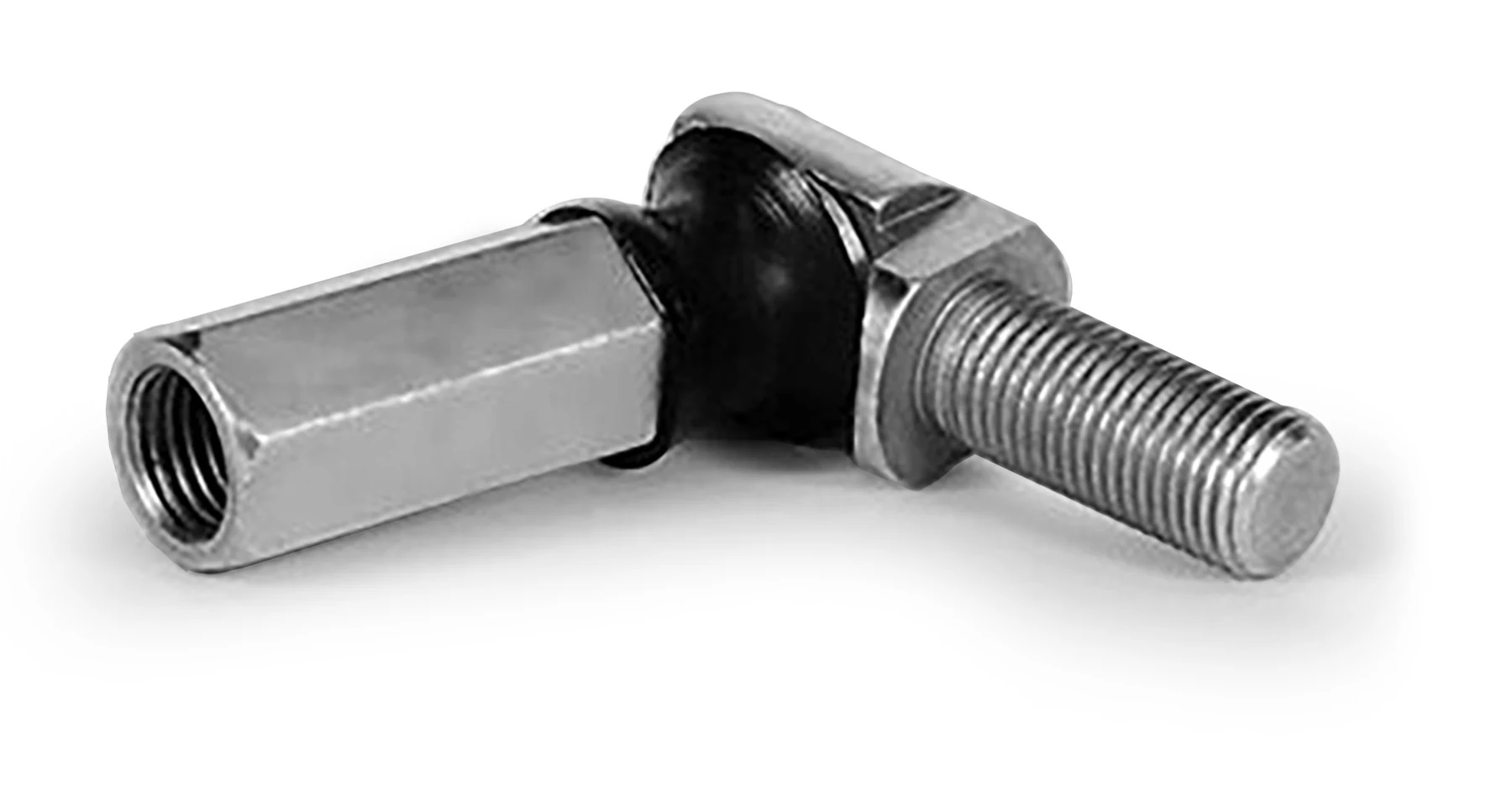

EMS375-4, Ball Joints, Male 3/8-24 RH Housing 3/8-24 RH Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.85 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 3/8-24 RH |
|---|---|
| Stud thread | 3/8-24 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.85 |
| 2+ | $12.13 |
| 3+ | $10.36 |
| 4+ | $9.94 |
| 5+ | $8.52 |
| 10+ | $7.08 |
| 20+ | $6.24 |
| 60+ | $4.19 |
| 120+ | $3.92 |
| 240+ | $3.31 |

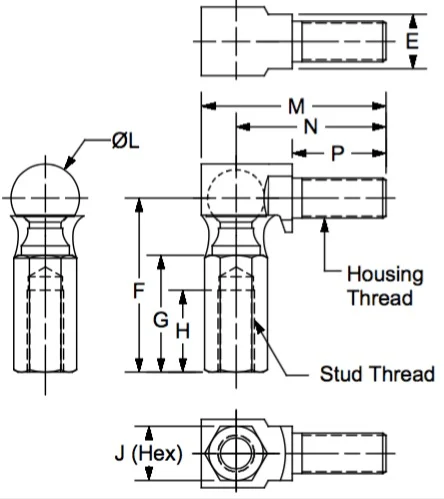

Drawing dimensions
| Housing Threads | 3/8-24 RH |
|---|---|
| Stud Threads | 3/8-24 RH |
| E | 0.497 |
| F | 1.593 |
| G | 1.069 |
| H | 0.800 |
| J | 0.499 |
| L | 0.626 |
| M | 1.693 |
| N | 1.375 |
| P | 0.875 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Ball Joints are typically assembled to the end of a rod, pipe, tube or cable linkage to provide misalignment between two moving points.
Construction: low carbon steel, plated and yellow dichromate treated for corrosion resistance. The Bearing cavity is filled with high wear lubricant.
Dust Shield: The EMS series are fitted with a rubber dust shield to protect the bearing cavity.
Specials: Special sizes and configurations are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
