MCPBall Joints · Male
EMSL187

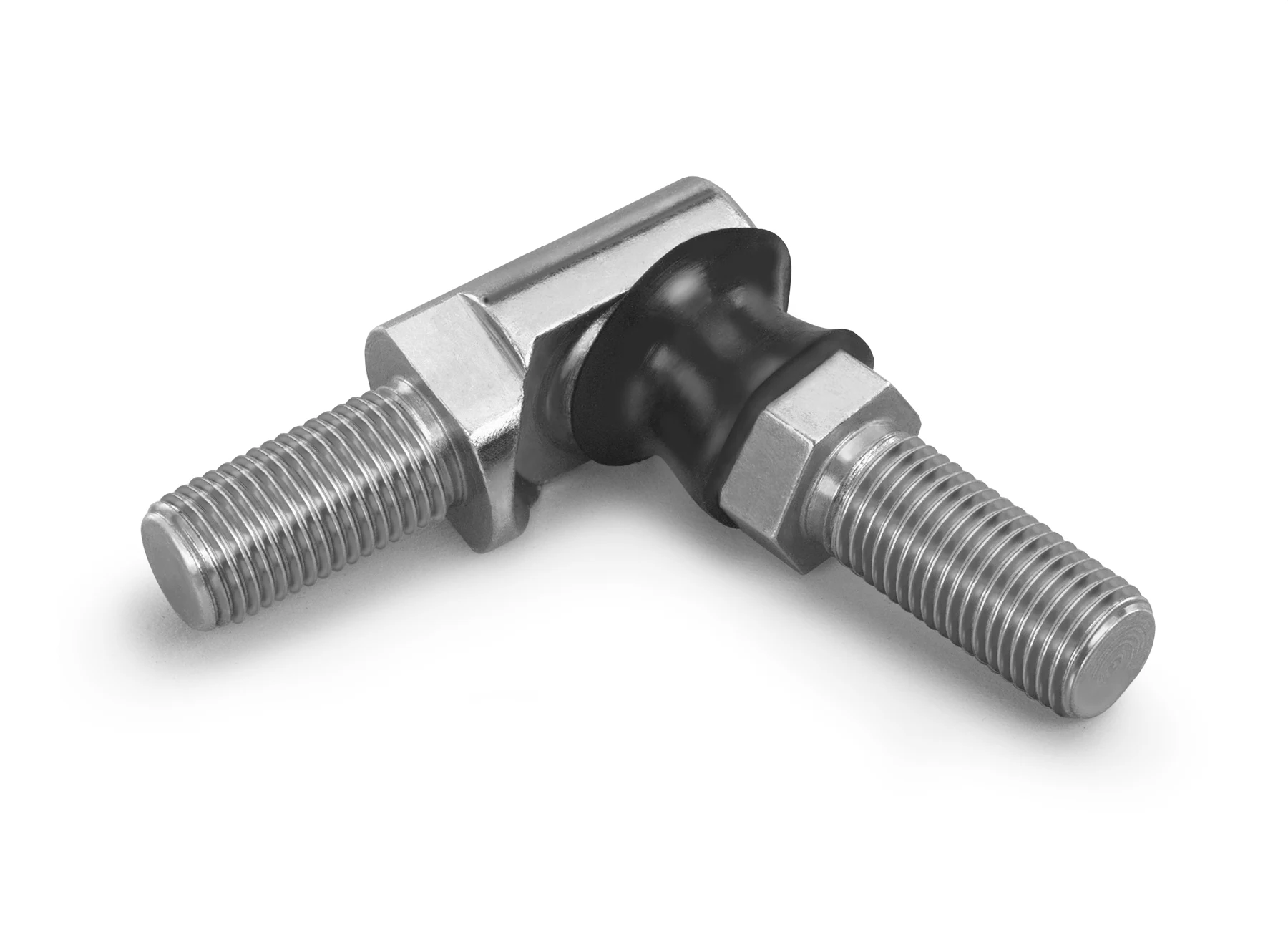

EMSL187, Ball Joints, Male 10-32 LH Housing 10-32 RH Stud

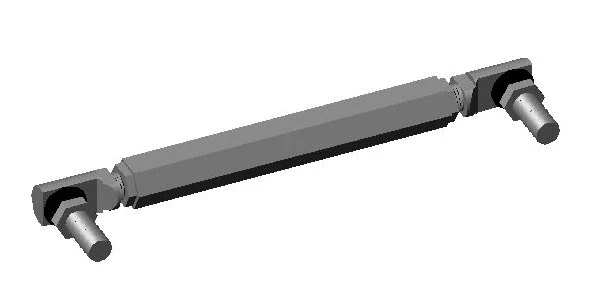

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.05 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 10-32 LH |
|---|---|
| Stud thread | 10-32 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.05 |
| 2+ | $3.55 |
| 3+ | $2.72 |
| 4+ | $2.30 |
| 5+ | $2.05 |
| 10+ | $1.53 |
| 25+ | $0.92 |
| 50+ | $0.75 |
| 75+ | $0.63 |
| 100+ | $0.54 |

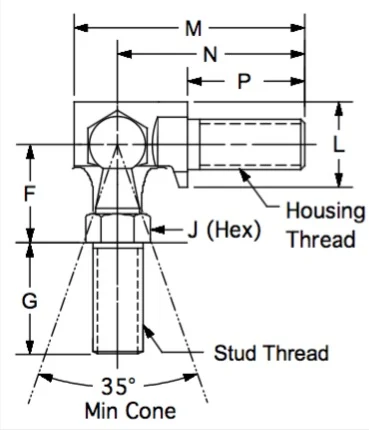

Drawing dimensions
| Housing Threads | 10-32 LH |
|---|---|
| Stud Threads | 10-32 RH |
| E | 0.172 |
| F | 0.438 |
| G | 0.438 |
| J | 0.313 |
| L | 0.375 |
| M | 1.063 |
| N | 0.875 |
| P | 0.474 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Ball Joints are typically assembled to the end of a rod, pipe, tube or cable linkage to provide misalignment between two moving points.
Construction: low carbon steel, plated and yellow dichromate treated for corrosion resistance. The Bearing cavity is filled with high wear lubricant.
Dust Shield: The EMS series are fitted with a rubber dust shield to protect the bearing cavity.
Specials: Special sizes and configurations are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
