MCPBall Joints · Female
ES625
ES625, Ball Joints, Female 5/8-18 RH Housing 5/8-18 RH Stud Plated Zinc Yellow

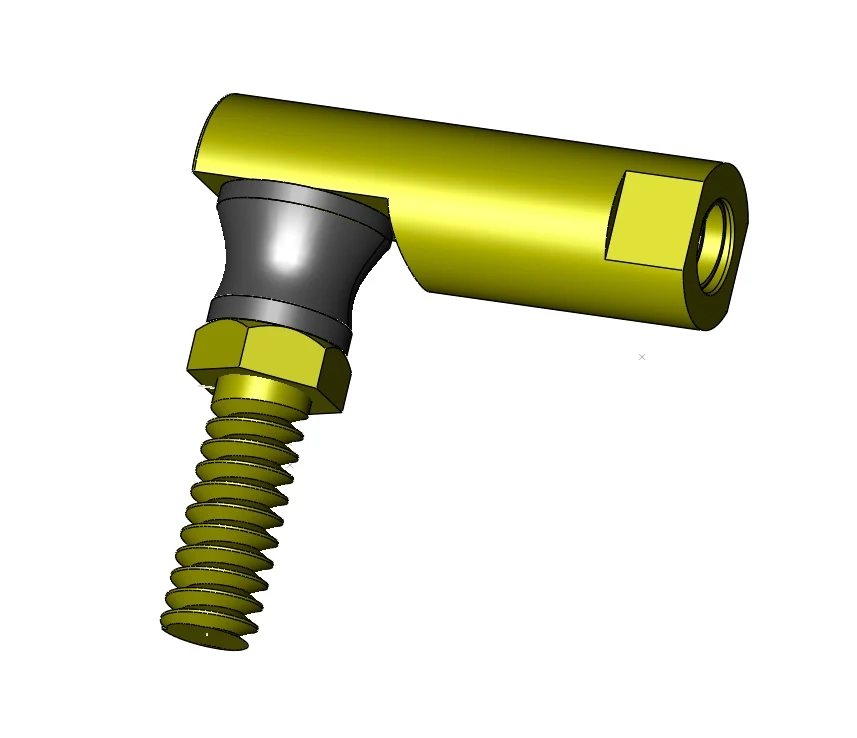

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$23.82 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 5/8-18 RH |
|---|---|
| Stud thread | 5/8-18 RH |
| Finish / plating | Yellow |
| Dust shield | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $23.82 |
| 2+ | $18.78 |
| 3+ | $15.92 |
| 4+ | $15.50 |
| 6+ | $13.81 |
| 10+ | $10.43 |
| 20+ | $9.16 |
| 40+ | $9.04 |
| 80+ | $8.21 |
| 120+ | $7.18 |
| 160+ | $7.17 |
| 200+ | $6.15 |
| 280+ | $6.12 |
| 440+ | $6.12 |
| 1,000+ | $6.01 |
Drawing dimensions
| Housing Threads | 5/8-18 RH |
|---|---|
| Stud Threads | 5/8-18 RH |
| Dust Shield | Yes |
| F | 1.000 |
| G | 1.125 |
| J | 0.750 |
| L | 0.875 |
| M | 2.578 |
| N | 2.063 |
| P | 1.000 |
| Finish | Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: low carbon steel, plated and dichromate treated for corrosion resistance. Bearing cavity filled with high wear lubricant. SAE J490 Type G Style 2
Options: Dust shields (add "S" before the size, ie ES375), and left hand threads (add an "L" before the size, ie ESL375).
Specials: specials are available in quantities of 100 pieces or more.
