MCPBall Joints · Female
ESCH187
ESCH187, Ball Joints, Female 10-32 RH Housing 10-32 RH Stud Chrome Plated

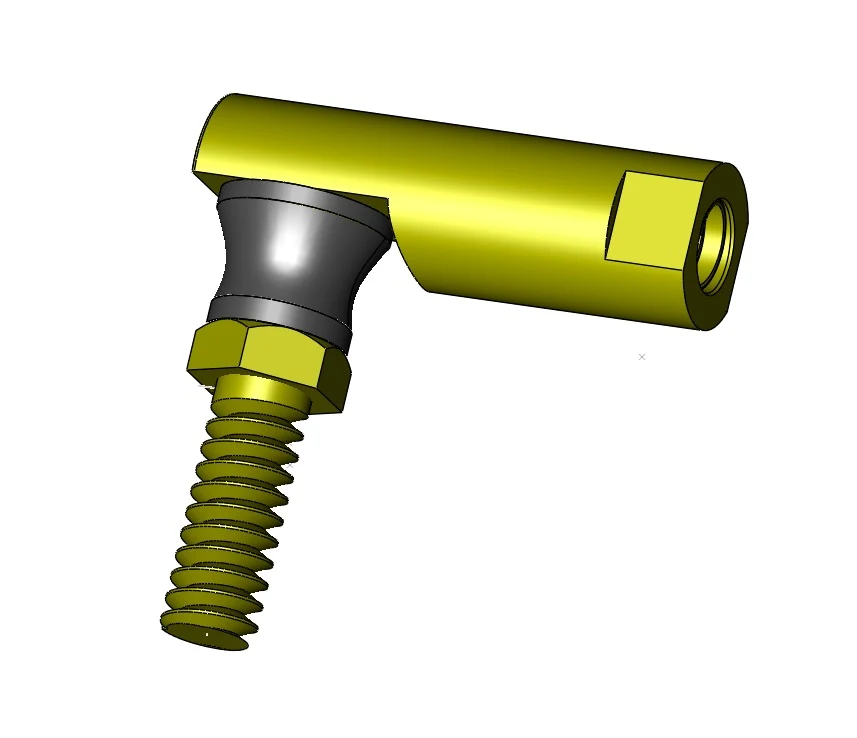

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 10-32 RH |
|---|---|
| Stud thread | 10-32 RH |
| Finish / plating | Chrome |
| Dust shield | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.20 |
| 2+ | $9.58 |
| 3+ | $6.59 |
| 4+ | $6.17 |
| 5+ | $5.44 |
| 10+ | $4.34 |
| 25+ | $3.26 |
| 50+ | $2.44 |
| 75+ | $2.41 |
| 100+ | $2.15 |
| 150+ | $2.13 |
| 300+ | $1.94 |
| 450+ | $1.69 |
| 600+ | $1.69 |

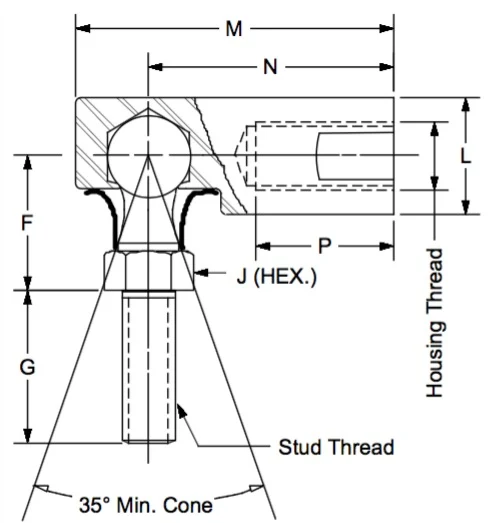

Drawing dimensions
| Housing Threads | 10-32 RH |
|---|---|
| Stud Threads | 10-32 RH |
| Dust Shield | Yes |
| F | 0.438 |
| G | 0.438 |
| J | 0.313 |
| L | 0.375 |
| M | 1.063 |
| N | 0.875 |
| P | 0.438 |
| Finish | Chrome |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: chrome plated steel housing and ball stud. Bearing cavity filled with high wear lubricant.
Dust Shield: the neoprene dust shield protects the bearing cavity from contaminants.
