MCPBall Joints · Female
EST250

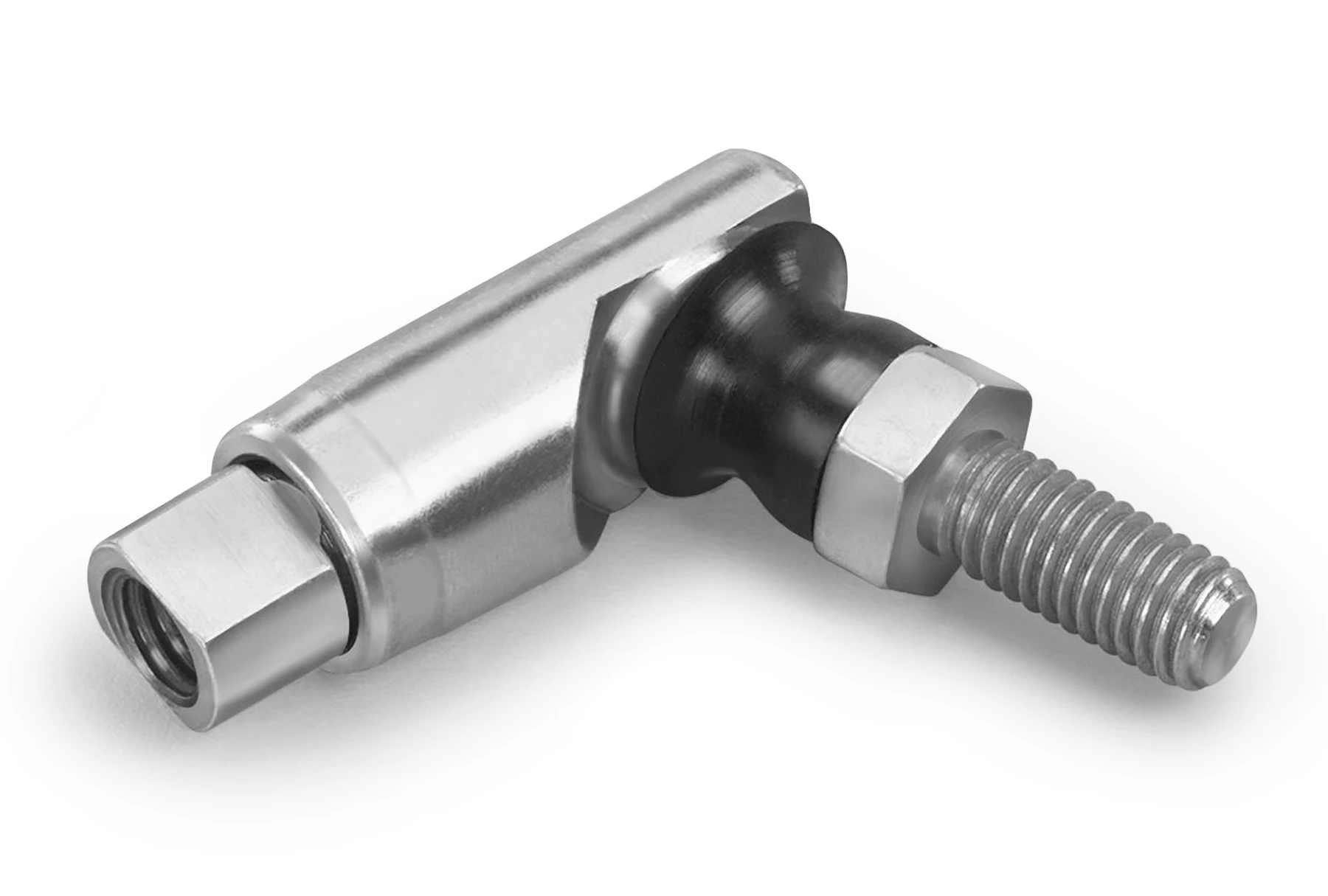

EST250, Ball Joints, Female 1/4-28 RH Housing 1/4-28 RH Stud Patented Turnbuckle Threads
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.16 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/4-28 RH |
|---|---|
| Stud thread | 1/4-28 RH |
| Finish / plating | Yellow |
| Dust shield | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.16 |
| 2+ | $13.47 |
| 3+ | $12.64 |
| 4+ | $10.74 |
| 5+ | $10.49 |
| 10+ | $8.06 |
| 25+ | $5.98 |
| 50+ | $5.29 |
| 75+ | $5.26 |
| 100+ | $4.94 |
| 150+ | $4.79 |
| 250+ | $4.17 |

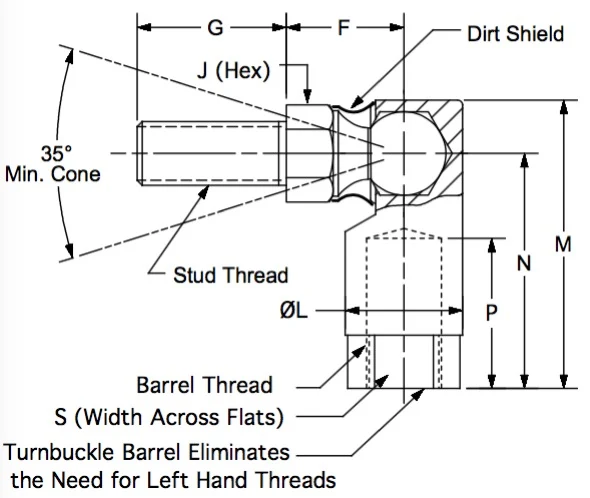

Drawing dimensions
| Housing Threads | 1/4-28 RH |
|---|---|
| Stud Threads | 1/4-28 RH |
| Dust Shield | Yes |
| F | 0.469 |
| G | 0.563 |
| J | 0.375 |
| L | 0.538 |
| M | 1.219 |
| N | 0.969 |
| P | 0.625 |
| S | 0.281 |
| Plating | Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Patented Design: The EST ball joints feature a special, PATENTED TURNBUCKLE feature that allows the ball joint assembly to be adjusted after installation without disconnecting the entire linkage assembly, and eliminates the need for left hand threads.
Video: https://www.youtube.com/watch?v=U793tfUOUOs
