MCPBall Joints · Female
EST375
EST375, Ball Joints, Female 3/8-24 RH Housing 3/8-24 RH Stud Patented Turnbuckle Threads
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$14.79 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 3/8-24 RH |
|---|---|
| Stud thread | 3/8-24 RH |
| Finish / plating | Yellow |
| Dust shield | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $14.79 |
| 2+ | $9.31 |
| 3+ | $8.47 |
| 4+ | $7.39 |
| 5+ | $7.14 |
| 10+ | $5.15 |
| 25+ | $4.44 |
| 50+ | $3.34 |
| 75+ | $2.97 |
| 100+ | $2.96 |
| 250+ | $2.68 |
| 500+ | $2.34 |
| 1,000+ | $2.00 |

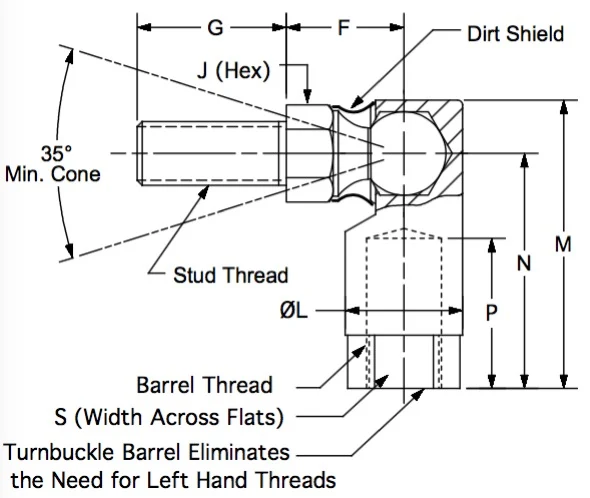

Drawing dimensions
| Housing Threads | 3/8-24 RH |
|---|---|
| Stud Threads | 3/8-24 RH |
| Dust Shield | Yes |
| F | 0.688 |
| G | 0.875 |
| J | 0.500 |
| L | 0.756 |
| M | 1.688 |
| N | 1.375 |
| P | 0.875 |
| S | 0.438 |
| Plating | Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Patented Design: The EST ball joints feature a special, PATENTED TURNBUCKLE feature that allows the ball joint assembly to be adjusted after installation without disconnecting the entire linkage assembly, and eliminates the need for left hand threads.
Video: https://www.youtube.com/watch?v=U793tfUOUOs
