MCPBall Joints · Female
ESTX-8mm
ESTX-8mm, Ball Joints, Female M8 x 1.25 RH Housing M8 x 1.25 RH Stud Patented Turnbuckle Threads
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$14.54 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M8 x 1.25 RH |
|---|---|
| Stud thread | M8 x 1.25 RH |
| Finish / plating | Yellow |
| Dust shield | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $14.54 |
| 2+ | $9.13 |
| 3+ | $8.29 |
| 4+ | $7.24 |
| 5+ | $6.99 |
| 10+ | $5.03 |
| 25+ | $4.33 |
Drawing dimensions
| Housing Threads | M8 x 1.25 RH |
|---|---|
| Stud Threads | M8 x 1.25 RH |
| Dust Shield | Yes |
| F | 13.49 |
| G | 17.48 |
| J | 11.13 |
| L | 14.61 |
| M | 78.59 |
| N | 71.45 |
| P | 57.15 |
| S | 8.71 |
| Plating | Yellow |
Lettered dimensions refer to the drawing for this part.
Product information

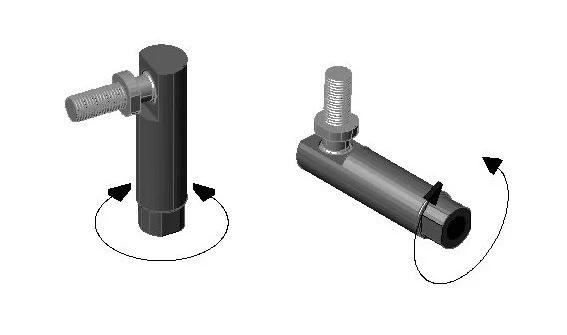

Patented Design: The EST ball joints feature a special, PATENTED TURNBUCKLE feature that allows the ball joint assembly to be adjusted after installation without disconnecting the entire linkage assembly, and eliminates the need for left hand threads.
Video: https://www.youtube.com/watch?v=U793tfUOUOs
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
