MCPBall Joints · Female
ESTX500
ESTX500, Ball Joints, Female 1/2-20 RH Housing 1/2-20 RH Stud Patented Turnbuckle Threads

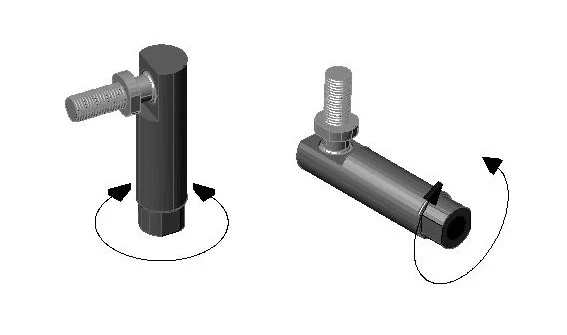

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/2-20 RH |
|---|---|
| Stud thread | 1/2-20 RH |
| Finish / plating | Yellow |
| Dust shield | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.27 |
| 2+ | $14.47 |
| 3+ | $13.64 |
| 4+ | $11.61 |
| 5+ | $10.07 |
| 10+ | $8.76 |
| 25+ | $6.52 |
| 50+ | $5.77 |
| 100+ | $5.40 |
Drawing dimensions
| Housing Threads | 1/2-20 RH |
|---|---|
| Stud Threads | 1/2-20 RH |
| Dust Shield | Yes |
| F | 0.875 |
| G | 1.125 |
| J | 0.625 |
| L | 0.944 |
| M | 5.375 |
| N | 4.938 |
| P | 4.000 |
| S | 0.562 |
| Plating | Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Patented Design: The EST ball joints feature a special, PATENTED TURNBUCKLE feature that allows the ball joint assembly to be adjusted after installation without disconnecting the entire linkage assembly, and eliminates the need for left hand threads.
Video: https://www.youtube.com/watch?v=U793tfUOUOs
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
