MCPBall Joints · Female
FFIL312

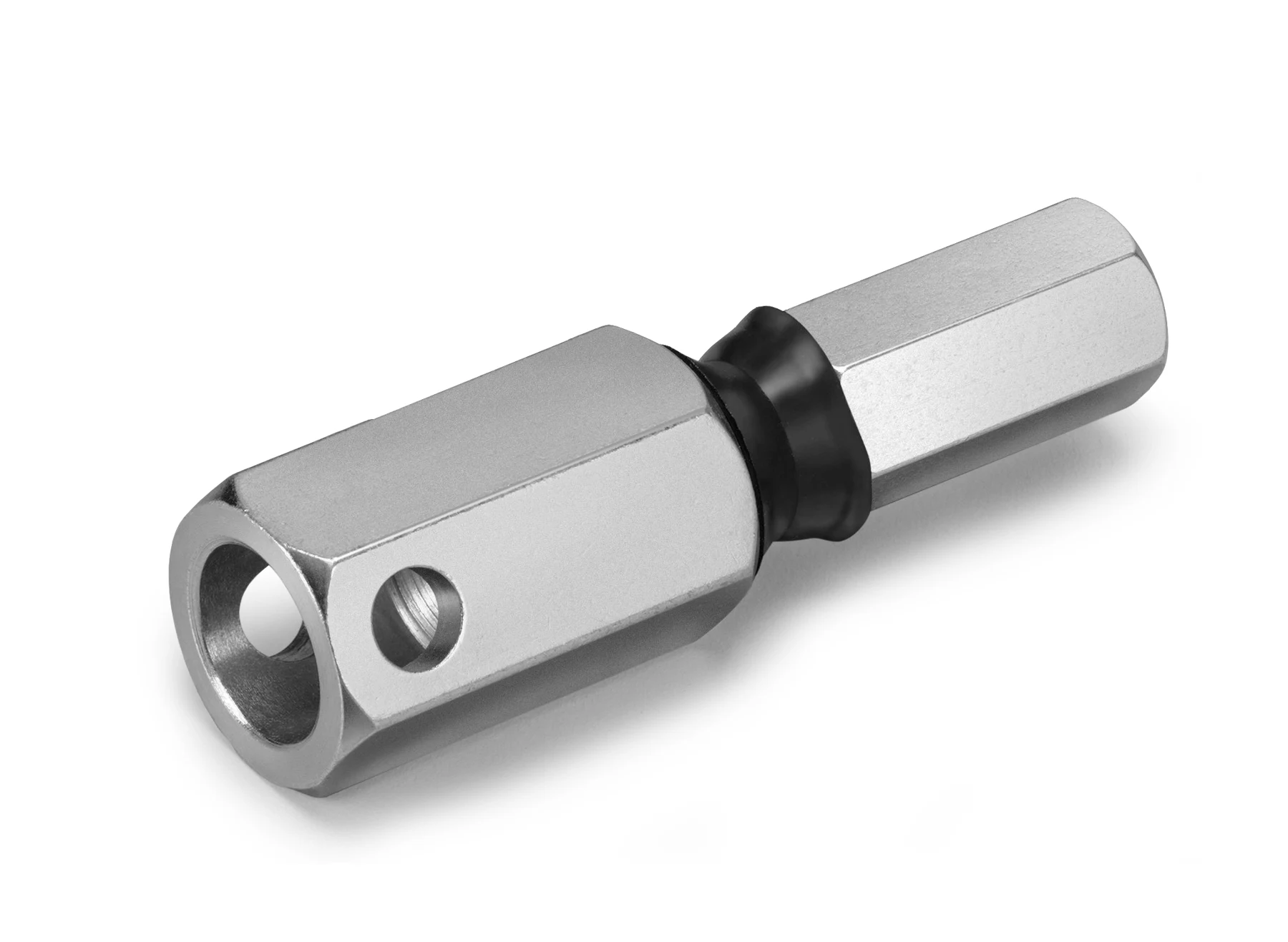

FFIL312, Ball Joints, Female 5/16-24 RH Housing 5/16-24 RH Stud Direct Valve Mount
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$15.63 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 5/16-24 RH |
|---|---|
| Stud thread | 5/16-24 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $15.63 |
| 2+ | $9.89 |
| 3+ | $8.34 |
| 4+ | $7.92 |
| 5+ | $7.67 |
| 10+ | $5.55 |
| 20+ | $4.85 |
| 40+ | $3.64 |
| 80+ | $3.22 |
| 120+ | $3.20 |
| 200+ | $2.91 |
| 400+ | $2.54 |
| 600+ | $2.17 |
| 1,000+ | $2.17 |

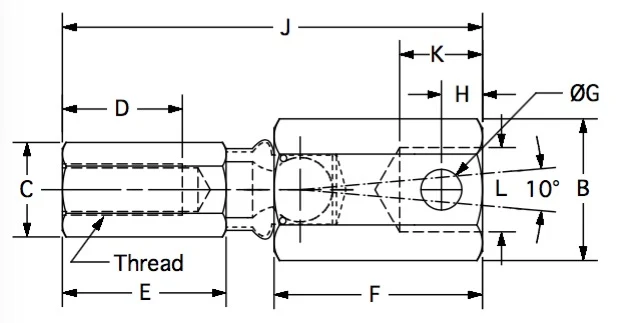

Drawing dimensions
| Threads | 5/16-24 RH |
|---|---|
| B | 3/4 hex |
| C | 1/2 hex |
| D | 0.750 |
| E | 1.000 |
| F | 1.270 |
| G | 0.250 |
| H | 0.250 |
| J | 2.563 |
| K | 0.563 |
| L | 0.5135 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Direct Valve Mount Ball Joints are used to provide a direct push/pull action on the hydraulic valve spool. The threaded end of the joint is typically assembled to either a connecting rod or a push/pull cable. The other end of the joint is connected with a clevis pin to the valve spool. Commonly used as motor grader control linkage ball joints.
Material: low carbon steel. Heat treated ball stud.
Metric: metric versions are available in volume.
Plating: plated zinc with a yellow dichromate finish.
Specials: Special sizes and configurations are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More ball joints
Compare specifications and drawings to select the right part.
