MCPBearings, Spherical Rod End · Male
FHTM-6-4

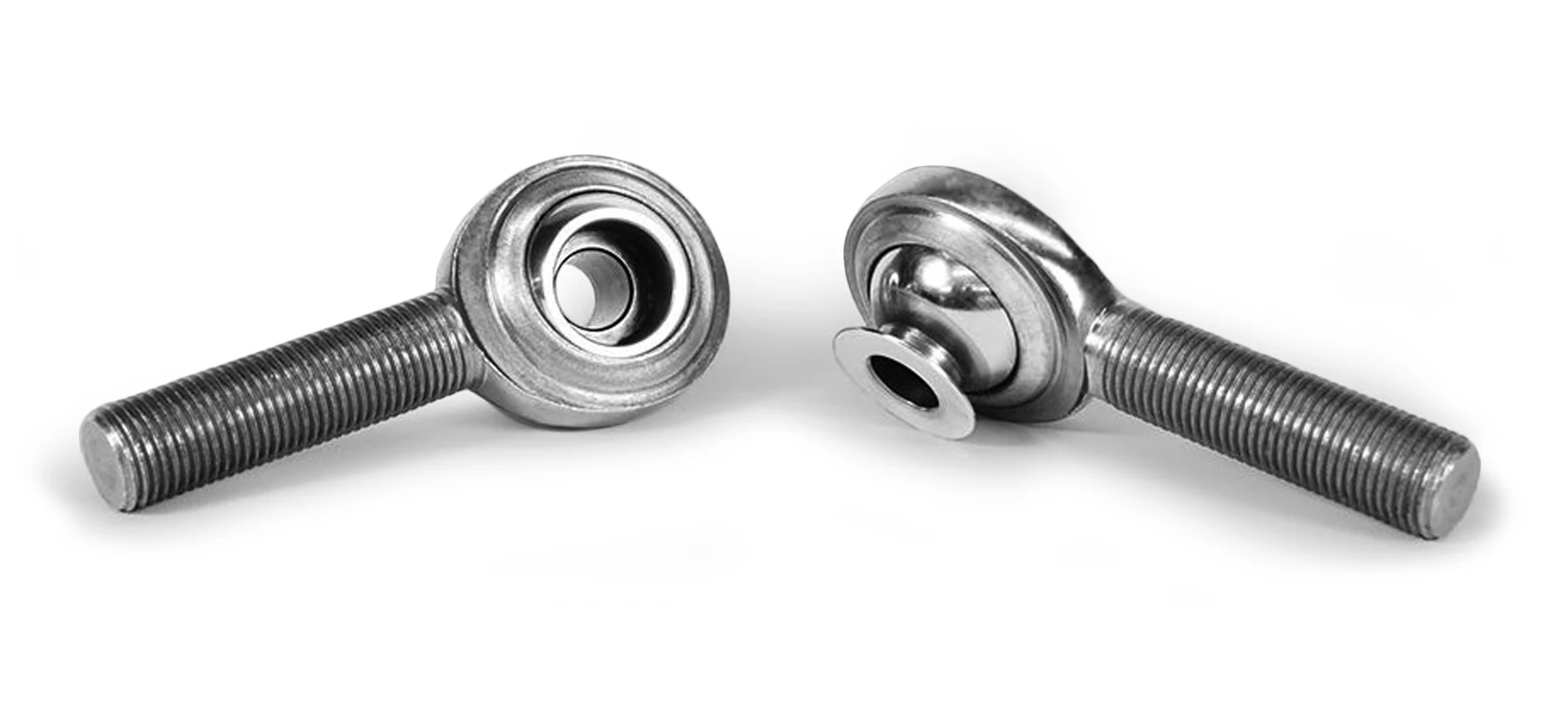

FHTM-6-4, Bearings, Spherical Rod End, Male 3/8-24 RH Steel Housing, PTFE Race 0.250 Bore Recessed Bolt Design
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$20.99 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 RH |
|---|---|
| Bore diameter | 0.25 |
| Housing construction | Steel |
| Race material | PTFE |
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $20.99 |
| 2+ | $16.93 |
| 3+ | $14.15 |
| 4+ | $12.18 |
| 5+ | $11.93 |
| 10+ | $10.45 |
| 25+ | $7.81 |
| 50+ | $6.93 |
| 75+ | $6.50 |
| 100+ | $6.30 |

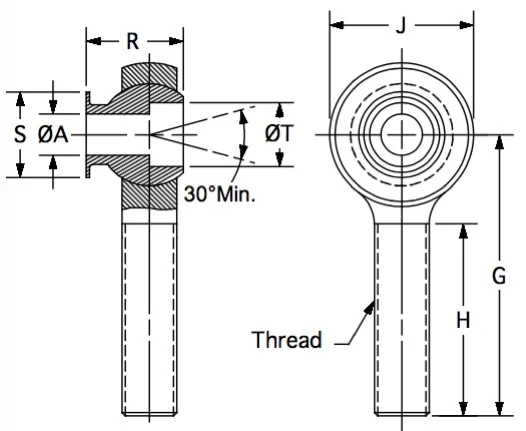

Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| Plating | Zinc Yellow |
| A | 0.250 |
| G | 1.938 |
| H | 1.250 |
| J | 1.000 |
| R | 0.708 |
| S | 0.530 |
| T | 0.396 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: PTFE
Ball: heat treated, hard chrome plated bearing steel, half trunion design, recessed ball.
Finish: zinc clear

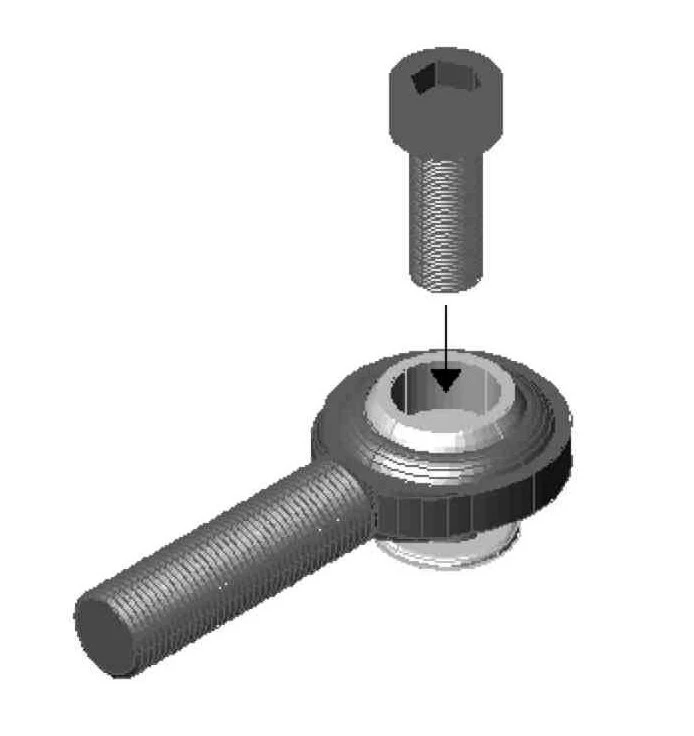

Application: this clevis rod end has a recessed area inside of the spherical ball that allows the cap screw (bolt) head to be hidden, increasing misalignment.
