MCPBall Joints · Female
FM-M5

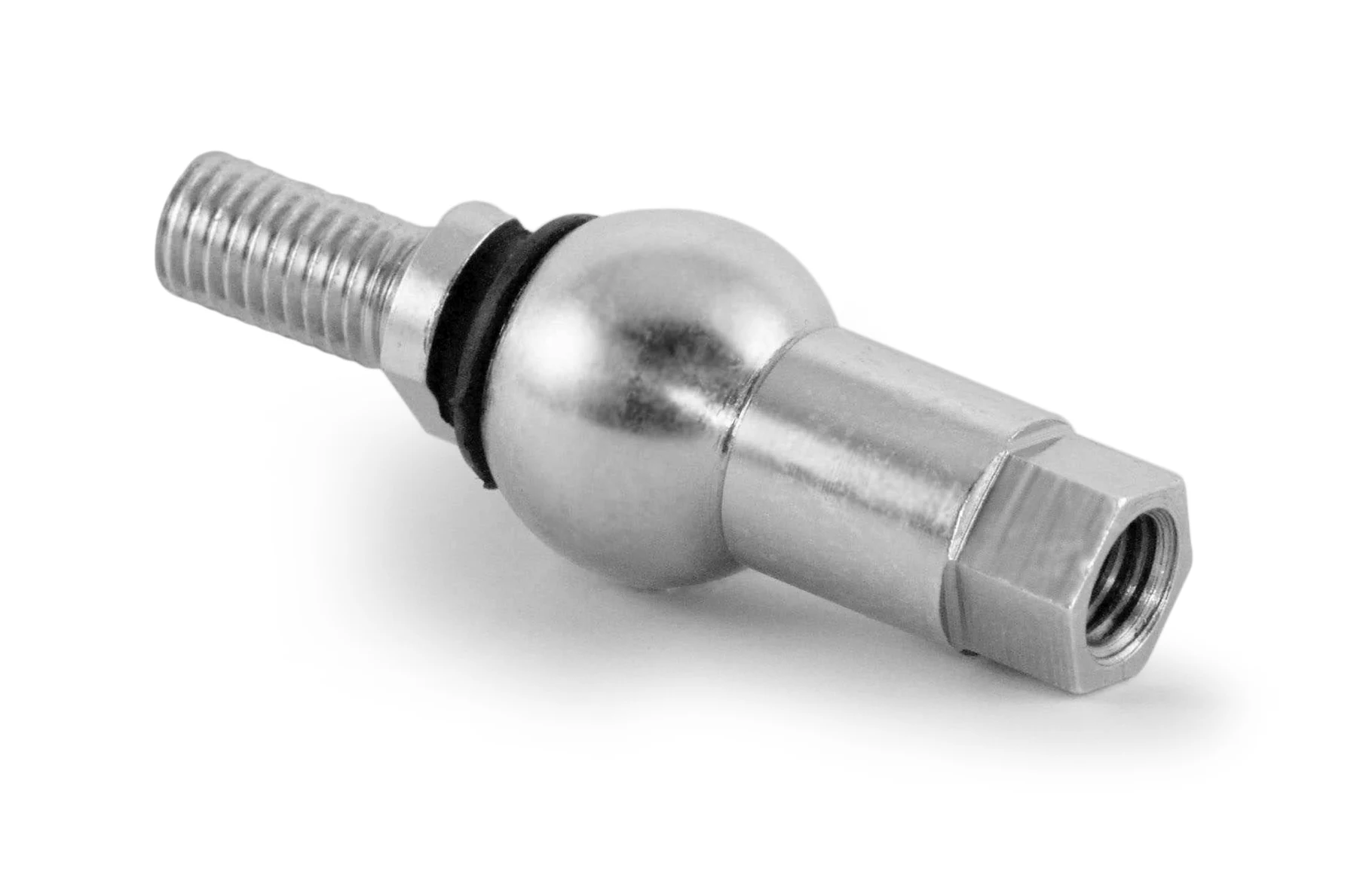

FM-M5, Ball Joints, Female M5 x 0.80 RH Housing M5 x 0.80 RH Stud Inline
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.53 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M5 x 0.8 RH |
|---|---|
| Stud thread | M5 x 0.8 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.53 |
| 2+ | $14.71 |
| 3+ | $13.88 |
| 4+ | $11.81 |
| 5+ | $10.24 |
| 10+ | $8.92 |
| 20+ | $6.69 |
| 30+ | $6.61 |
| 50+ | $5.88 |
| 100+ | $5.50 |
| 150+ | $5.31 |
| 250+ | $4.64 |
| 350+ | $3.98 |

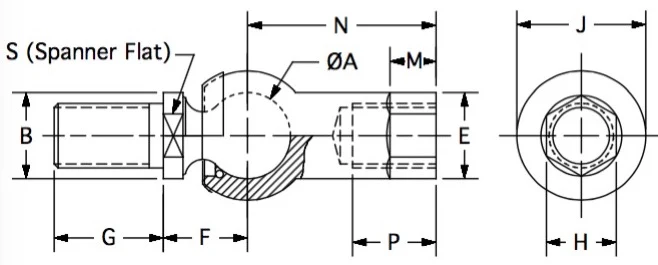

Drawing dimensions
| Housing Threads | M5 x 0.80 RH |
|---|---|
| Stud Threads | M5 x 0.80 RH |
| A | 8 |
| B | 8 |
| E | 8 |
| F | 9 |
| G | 10.2 |
| H | 7 |
| J | 12.8 |
| M | 5 |
| N | 22 |
| P | 10.2 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: C1018 steel
Finish: Plated Zinc Clear
Feature: in-line ball joint
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
