MCPHydraulic Adapters · Union, Male, OFS
FS2403-10-10
FS2403-10-10, Hydraulic Adapters, Union, Male, OFS 1-14 1-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.42 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1-14 |
|---|---|
| Connection 2 thread | 1-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.42 |
| 2+ | $3.92 |
| 3+ | $3.09 |
| 4+ | $2.67 |
| 5+ | $2.42 |
| 10+ | $1.90 |
| 25+ | $1.08 |
| 50+ | $0.86 |
| 75+ | $0.74 |
| 100+ | $0.72 |

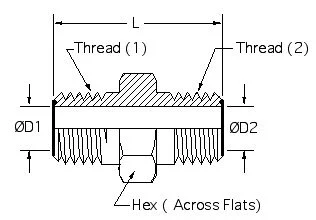

Drawing dimensions
| L | 1.68 |
|---|---|
| D1 | 0.484 |
| D2 | 0.484 |
| Hex | 1 1/16 |
| Thread 1 | 1-14 |
| Thread 2 | 1-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
