MCPHydraulic Adapters · Union, Male, OFS-Pipe (NPTF)
FS2404-04-06

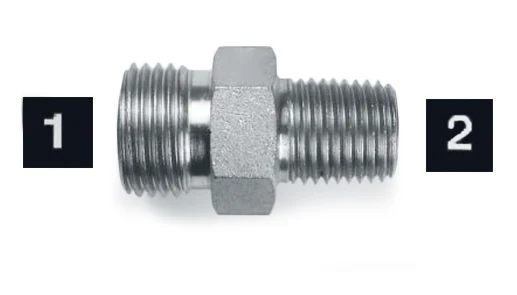

FS2404-04-06, Hydraulic Adapters, Union, Male, OFS-Pipe (NPTF) 9/16-18 3/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.19 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.19 |
| 2+ | $10.28 |
| 3+ | $8.69 |
| 4+ | $8.27 |
| 5+ | $8.02 |
| 10+ | $5.81 |
| 25+ | $5.04 |
| 50+ | $3.80 |
| 75+ | $3.39 |
| 100+ | $3.37 |
| 250+ | $3.05 |
| 500+ | $2.67 |

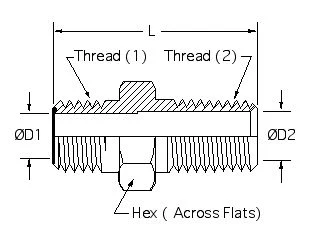

Drawing dimensions
| L | 1.26 |
|---|---|
| D1 | 0.172 |
| D2 | 0.406 |
| Hex | 3/4 |
| Thread 1 | 9/16-18 |
| Thread 2 | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
