MCPHydraulic Adapters · Elbow, 90°, Male, OFS-Pipe (NPTF)
FS2501-08-06

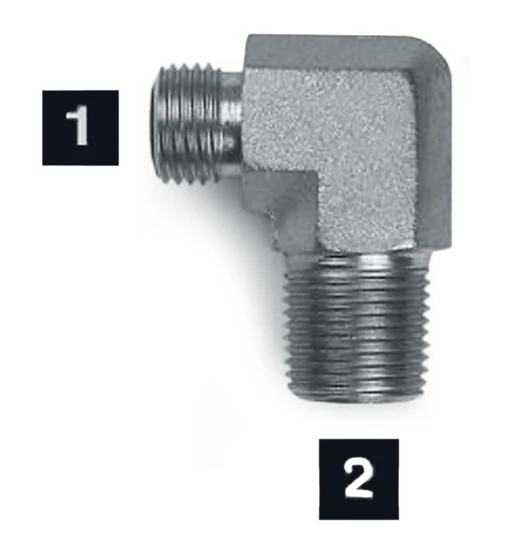

FS2501-08-06, Hydraulic Adapters, Elbow, 90°, Male, OFS-Pipe (NPTF) 3/8-18 13/16-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.52 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 13/16-16 |
|---|---|
| Connection 2 thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.52 |
| 2+ | $4.02 |
| 3+ | $3.19 |
| 4+ | $2.77 |
| 5+ | $2.52 |
| 10+ | $1.54 |
| 25+ | $1.14 |
| 50+ | $0.92 |
| 75+ | $0.78 |
| 100+ | $0.70 |
Drawing dimensions
| L1 | 1.10 |
|---|---|
| L2 | 1.22 |
| D1 | 0.378 |
| D2 | 0.406 |
| Hex | 3/4 |
| Thread 1 | 13/16-16 |
| Thread 2 | 3/8-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
