FS2503-06-04
FS2503-06-04, Hydraulic Adapters, Elbow, 45°, Male, OFS-Pipe (NPTF) 1/4-18 11/16-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.35 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 11/16-16 |
|---|---|
| Connection 2 thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.35 |
| 2+ | $3.85 |
| 3+ | $3.01 |
| 4+ | $2.60 |
| 5+ | $2.35 |
| 10+ | $1.83 |
| 25+ | $1.04 |
| 50+ | $0.82 |
| 75+ | $0.70 |
| 100+ | $0.69 |

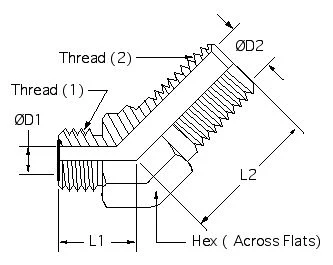

Drawing dimensions
| L1 | 0.72 |
|---|---|
| L2 | 0.94 |
| D1 | 0.264 |
| D2 | 0.281 |
| Hex | 3/4 |
| Thread 1 | 11/16-16 |
| Thread 2 | 1/4-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
