MCPHydraulic Adapters · Tee, Male, OFS
FS2603-04-04-04
FS2603-04-04-04, Hydraulic Adapters, Tee, Male, OFS 9/16-18 9/16-18 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.57 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 9/16-18 |
| Connection 3 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.57 |
| 2+ | $4.07 |
| 3+ | $3.23 |
| 4+ | $2.82 |
| 5+ | $2.57 |
| 10+ | $1.58 |
| 25+ | $1.17 |
| 50+ | $0.94 |
| 75+ | $0.80 |
| 100+ | $0.72 |

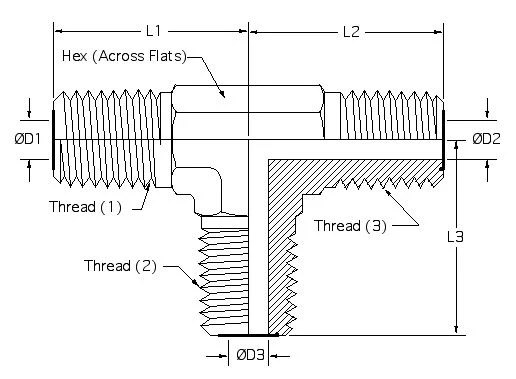

Drawing dimensions
| L1 | 0.85 |
|---|---|
| L2 | 0.85 |
| L3 | 0.85 |
| D1 | 0.172 |
| D2 | 0.172 |
| D3 | 0.172 |
| Hex | 9/16 |
| Thread(1) | 9/16-18 |
| Thread (2) | 9/16-18 |
| Thread(3) | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
