MCPHydraulic Adapters · Elbow, 45°, Male, Bulkhead, OFS
FS2702LN-06-06

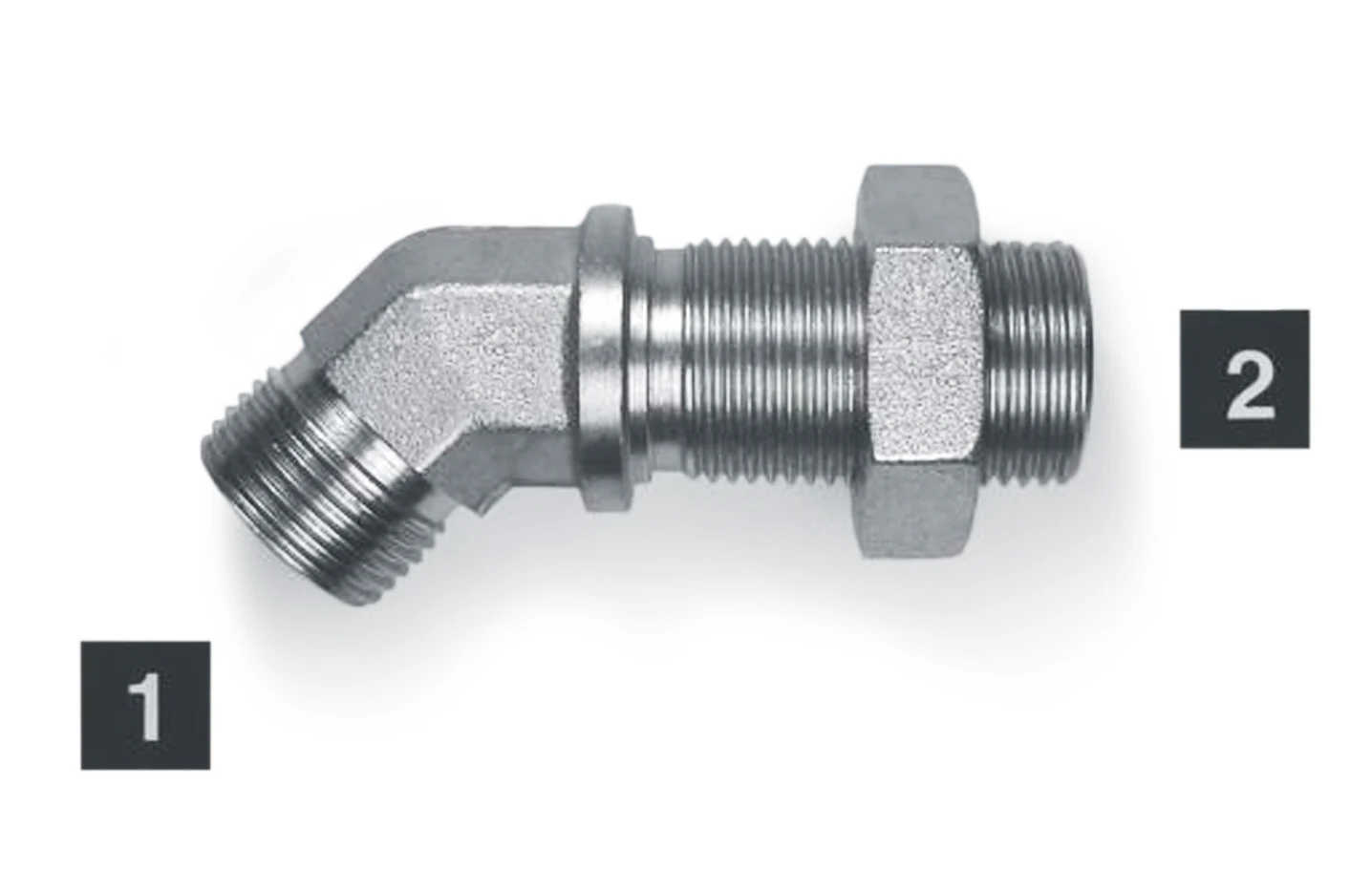

FS2702LN-06-06, Hydraulic Adapters, Elbow, 45°, Male, Bulkhead, OFS 11/16-16 11/16-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.98 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 11/16-16 |
|---|---|
| Connection 2 thread | 11/16-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.98 |
| 2+ | $4.48 |
| 3+ | $3.65 |
| 4+ | $3.23 |
| 5+ | $2.95 |
| 10+ | $1.86 |
| 25+ | $1.42 |
| 50+ | $1.03 |
| 75+ | $1.00 |
| 100+ | $0.90 |

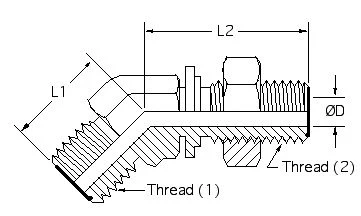

Drawing dimensions
| L1 | 0.74 |
|---|---|
| L2 | 1.91 |
| D | 0.264 |
| Hex | 3/4 |
| Thread 1 | 11/16-16 |
| Thread 2 | 11/16-16 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
