Hydraulic Adapters · Tee, Branch, Bulkhead, Male, OFS

FS2703LN-08-08-08

FS2703LN-08-08-08, Hydraulic Adapters, Tee, Branch, Bulkhead, Male, OFS 13/16-16 13/16-16 13/16-16

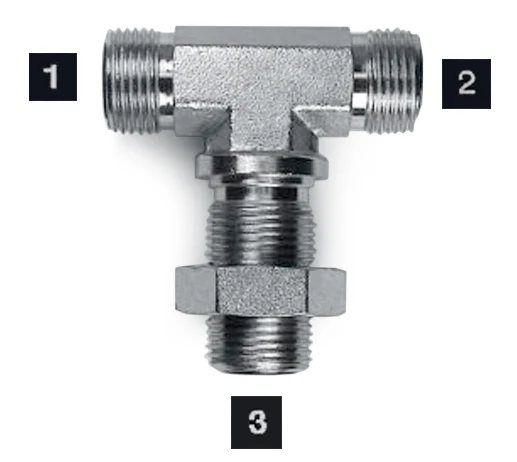

Product image
FS2703LN-08-08-08 product image

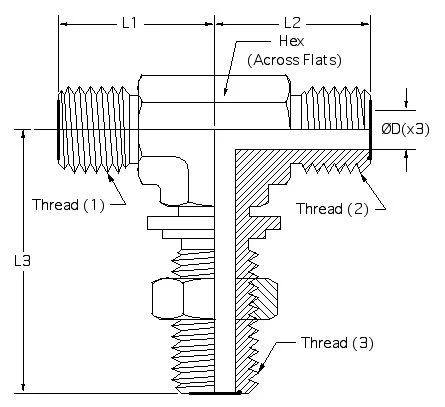

Dimension drawing 1
FS2703LN-08-08-08 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.58 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread13/16-16
Connection 2 thread13/16-16
Connection 3 thread13/16-16

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.58
2+$6.08
3+$5.19
4+$4.77
5+$3.45
10+$2.71
25+$2.12
50+$1.63
100+$1.23
250+$1.06
500+$0.99

Drawing dimensions

L11.14
L21.14
L32.18
D0.378
Hex3/4
Thread 113/16-16
Thread 213/16-16
Thread 313/16-16

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
