MCPHydraulic Adapters · Nut, Flare, No-Braze, OFS
FS418-06

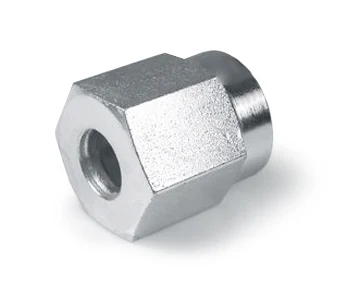

FS418-06, Hydraulic Adapters, Nut, Flare, No-Braze, OFS 11/16-16 3/8 Tube OD
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.26 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 11/16-16 |
|---|---|
| Tube outside diameter | 3/8 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.26 |
| 2+ | $5.76 |
| 3+ | $4.87 |
| 4+ | $4.45 |
| 5+ | $3.23 |
| 10+ | $2.51 |
| 25+ | $1.94 |
| 50+ | $1.49 |
| 100+ | $1.11 |
| 250+ | $0.97 |

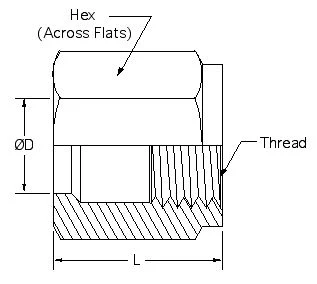

Drawing dimensions
| L | 0.93 |
|---|---|
| D | 0.380 |
| Hex | 13/16 |
| Thread | 11/16-16 |
| Tube OD | 3/8 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
