Hydraulic Adapters · Sleeve, Tube, No-Braze, OFS

FS419-06

FS419-06, Hydraulic Adapters, Sleeve, Tube, No-Braze, OFS 3/8 Tube OD 0.260

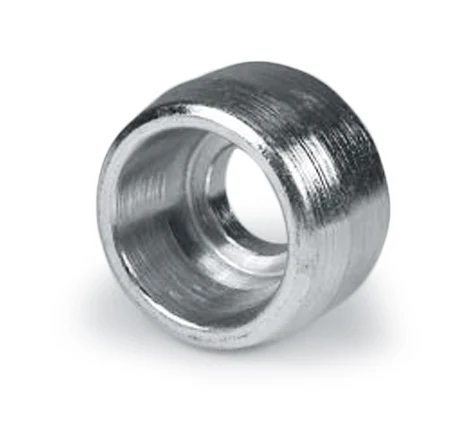

Product image
FS419-06 product image
Dimension drawing 1
FS419-06 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.26 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Tube outside diameter3/8

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.26
2+$5.76
3+$4.87
4+$4.45
5+$3.23
10+$2.51
25+$1.94
50+$1.49
100+$1.11
250+$0.97

Drawing dimensions

L0.34
D10.38
D20.260
Tube OD3/8

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated
