MCPHydraulic Adapters · Union, Male, OFS-ORB
FS6400-04-06

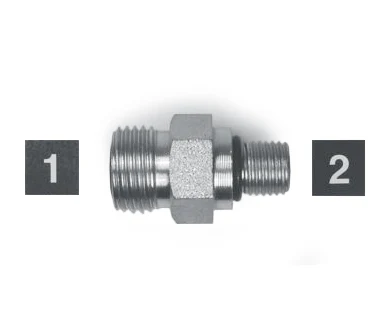

FS6400-04-06, Hydraulic Adapters, Union, Male, OFS-ORB 9/16-18 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.75 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 9/16-18 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.75 |
| 2+ | $3.25 |
| 3+ | $2.42 |
| 4+ | $2.00 |
| 5+ | $1.75 |
| 10+ | $1.25 |
| 25+ | $0.71 |
| 50+ | $0.56 |
| 75+ | $0.53 |
| 100+ | $0.45 |
| 250+ | $0.34 |
| 500+ | $0.25 |
Drawing dimensions
| L | 1.20 |
|---|---|
| D1 | 0.172 |
| D2 | 0.264 |
| Hex | 3/4 |
| Thread 1 | 9/16-18 |
| Thread 2 | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
