MCPHydraulic Adapters · Union, Male-Female, Swivel, OFS-JIC
FS6402-04-04

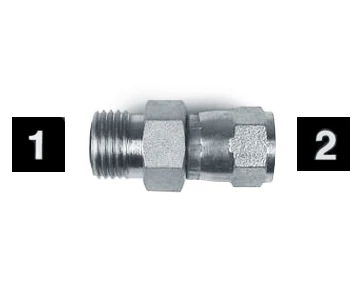

FS6402-04-04, Hydraulic Adapters, Union, Male-Female, Swivel, OFS-JIC 7/16-20 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.25 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.25 |
| 2+ | $3.75 |
| 3+ | $2.92 |
| 4+ | $2.50 |
| 5+ | $2.25 |
| 10+ | $1.73 |
| 25+ | $0.97 |
| 50+ | $0.77 |
| 75+ | $0.65 |
| 100+ | $0.63 |
Drawing dimensions
| L | 1.36 |
|---|---|
| D | 0.172 |
| Hex 1 | 9/16 |
| Hex 2 | 5/8 |
| Thread 1 | 7/16-20 |
| Thread 2 | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
