MCPHydraulic Adapters · Union, Female-Male, Swivel, OFS-ORB
FS6412-06-06

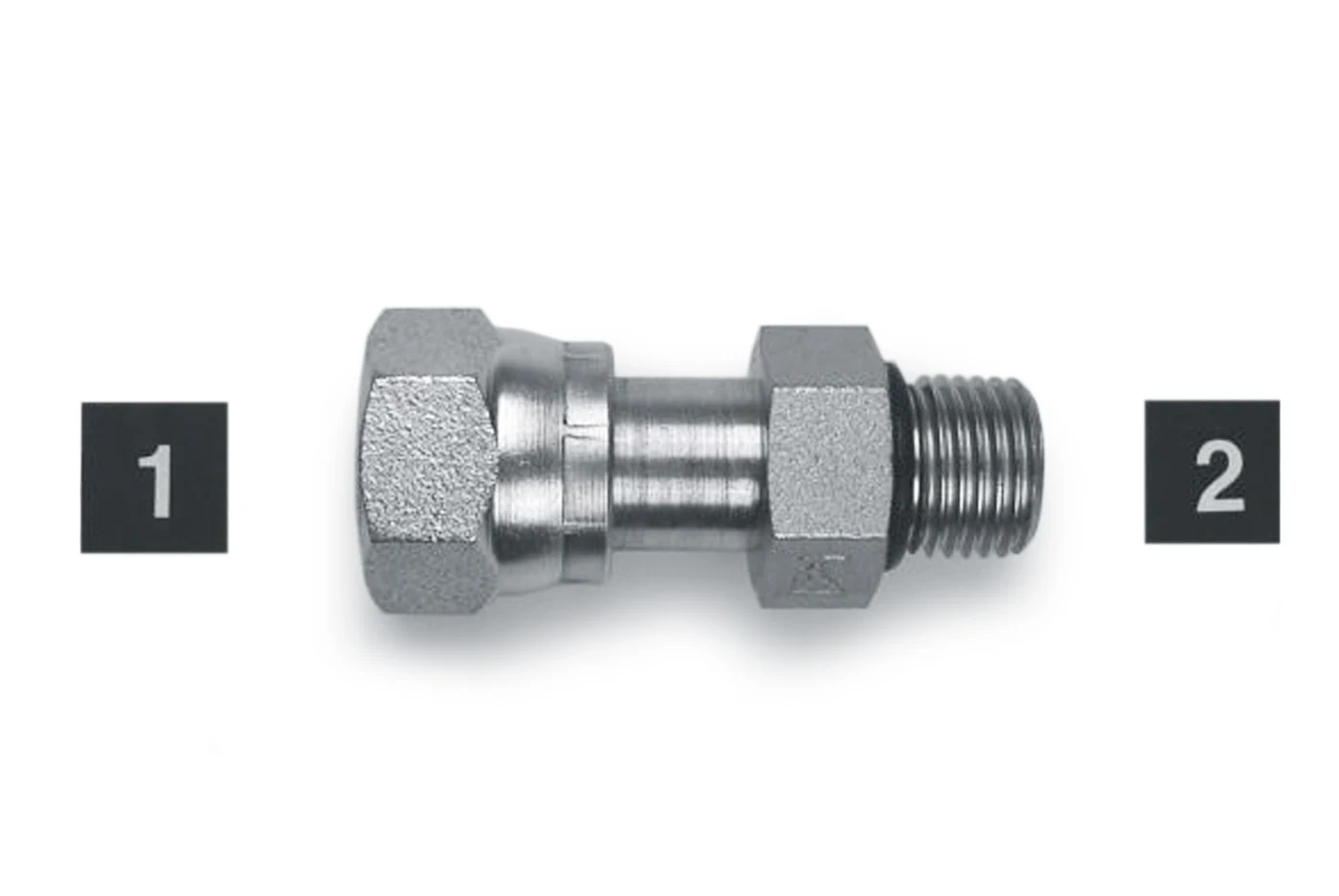

FS6412-06-06, Hydraulic Adapters, Union, Female-Male, Swivel, OFS-ORB 9/16-18 11/16-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.74 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 11/16-16 |
|---|---|
| Connection 2 thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.74 |
| 2+ | $4.24 |
| 3+ | $3.40 |
| 4+ | $2.99 |
| 5+ | $2.74 |
| 10+ | $1.69 |
| 25+ | $1.27 |
| 50+ | $1.03 |
| 75+ | $0.88 |
| 100+ | $0.79 |
Drawing dimensions
| L | 1.58 |
|---|---|
| D1 | 0.264 |
| D2 | 0.264 |
| Hex 1 | 3/4 |
| Hex 2 | 13/16 |
| Thread 1 | 11/16-16 |
| Thread 2 | 9/16-18 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
